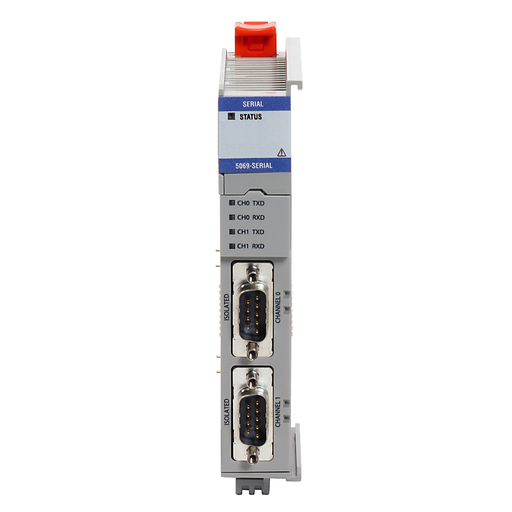

Product image for Allen Bradley 5069-SERIAL Compact 5000 Serial Interface Module
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen Bradley 5069-SERIAL Compact 5000 Serial Interface Module

Manufacturer: Allen Bradley / Rockwell | Catalog # 5069-SERIAL | Codale Part # 4228904
$934.71/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Compact 5000 Serial Interface Module

Technical Information

Mounting Type
DIN Rail
Number of Channels
2
Operating Temperature
140 degrees F
Standard
C-TICK,CE,CUL,KC,UL
Temperature Rating
0 - 60 degrees C
Type
2-Channel, Speciality
Voltage
250 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
Compact 5000

General Product Info

12-Digit UPC
889508480275
Product UPC
88950848027
Protocol
RS-232C, RS-422 (Full Duplex), RS-485 (Half Duplex)
Weight
0.5800 lb

Dimensions

Depth
4.15 Inch
Height
5.69 Inch
Width
0.87 in
Features
  • Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
  • Provide improved status indicators to monitor and troubleshoot systems
  • Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
  • Support up to 31 I/O modules per controller or adapter
  • Provide faster safety reaction time
  • Rated up to SIL3/PLe
  • Support up to 31 I/O modules
  • Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
  • Provide high-speed backplane communications for faster transfer rates
  • Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
  • Provide separate system power for better isolation and built-in power input with field power to I/O modules
  • Use the slim 5069-AENTR for small space requirements
  • Provide a local safety connectivity to the Compact GuardLogix 5380
  • Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
  • Provide enhanced diagnostics information
  • Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
