Hubbell HBL2456 20 Amp 277/480 Volt 4-Pole 4-Wire NEMA L19-20R White Locking Flanged Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2456 | Codale Part # 4229933
$187.79/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

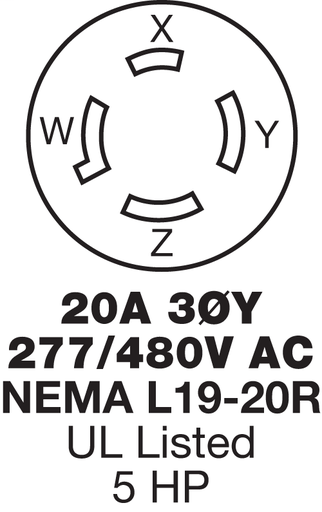

Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 20A 3-Phase WYE 277/480V AC, 4-Pole 4-Wire Non- Grounding, NEMA L19-20R, Screw Terminal, Nylon casing, Back wired, White

Technical Information

Amperage
20 Amp
Applications
Insulgrip
Conductor Size
14-8 AWG
Connection Type
Screw Terminal
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
5 hp
Material
Thermoplastic
NEMA
L19-20R
Number of Conductors
4
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Ports
4
Number of Wires
4,4
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Standard
Voltage
277/480 Volt
Wattage
9600 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585038421
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503842
Weight
0.4 lb

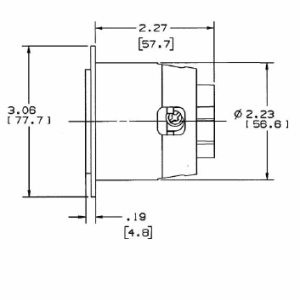

Dimensions

Height
2.27 Inch
Length
3.06 Inch
Width
3.06 in

Certifications and Compliance

Country of Origin
USA
Features
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
