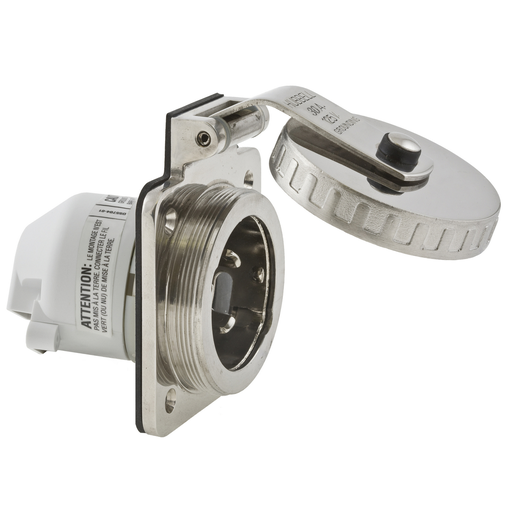

Hubbell HBL303SS 30 Amp 125 Volt 2-Pole 3-Wire NEMA L5-30R Stainless Steel Power Inlet

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL303SS | Codale Part # 4230660
$564.76/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Marine Grade, Hull Inlet, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Stainless Steel

Technical Information

Amperage
30 Amp
Applications
Marine Wiring Devices
Conductor Size
12-10 AWG
Current
30 Amp
Dielectric Strength
Withstands 3000V Minimum in
Material
Thermoplastic
Mounting Type
Screw Hull, Surface
NEMA
L5-30P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Rating
125 V
Size
Standard Sized
Standard
UL
Tc Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type
Hull Mount, Single, Marine Grade
Voltage
125 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585040523
Color
Stainless
Environmental Conditions
Watertight
Product UPC
78358504052
Weight
1.5 lb

Dimensions

Height
3.7 Inch
Length
4.6 Inch
Width
5.140 in

Certifications and Compliance

Country of Origin
USA
Features
  • New quick connect with backwards compatibility
  • Self-closing Cover
  • Corrossion Resistant Base and Cover
  • Threaded Base for making a watertight seal
