Hubbell IG9308 SGL Receptacle, IG, 30A 125, 5-30R, OR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # IG9308 | Codale Part # 4231781
$86.47/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade , 2-Pole 3-Wire Grounding, 30A 125V, 5-20R, Orange, Single Pack.

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty
Conductor Size
12-4 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Composite
NEMA
5-30R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E2186,NEMA® WD-6,UL
Style
Finder Groove Face
Tc Connection
Back and Side Wired Terminal Screws
Type
Non-Reversing
Voltage
125 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585880709
Color
Orange
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Extra Heavy Duty Hospital Grade
Product UPC
78358588070
Weight
0.45 lb

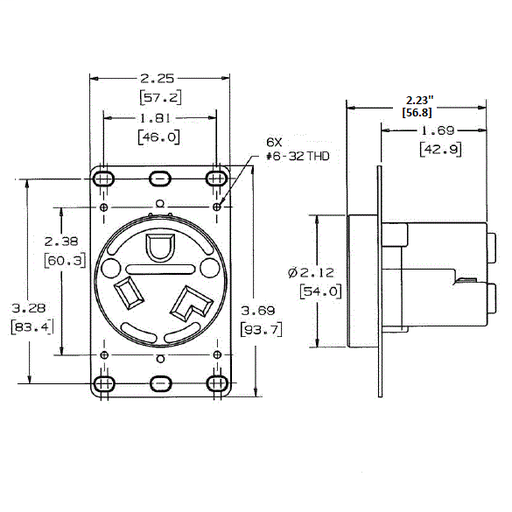

Dimensions

Height
2.23 Inch
Length
3.68 Inch
Width
2.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
  • Isolated Ground
