PAN T25F-C8 T25F-C8 Spiral Wrap

Manufacturer: Panduit | Catalog # T25F-C8 | Codale Part # 4231790
$183.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

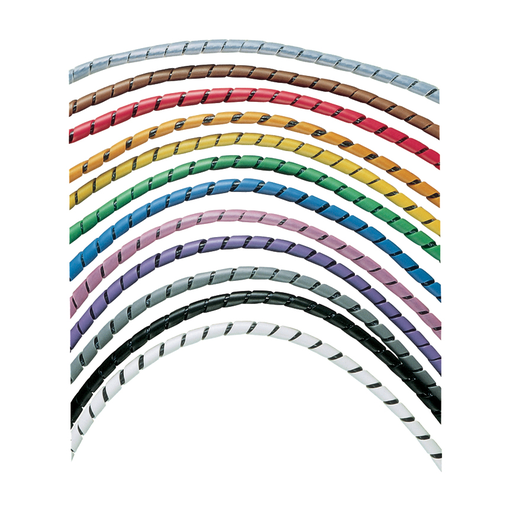

The T25F-C8 Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122.F (50.C). 0.25" (6.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.1875" to 2" (4.8 mm to 50.8 mm). Color Gray.

Technical Information

Applications
(1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Material
Polyethylene
Max Operating Temperature
149 degrees F
Min Operating Temperature
-40 degrees C
Temperature Rating
149 ?degrees F
Type
Spiral Wrap
Wall Thickness
0.04 In.

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.

General Product Info

12-Digit UPC
074983384273
Color
Gray
Product UPC
07498338427
UNSPSC
39131604
Weight
1.9050 lb

Dimensions

Length
100 Inch
Outer Diameter
0.25 in
Outside Diameter
0.25 In.
Overall Length
100 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: UL Recognized E141152
