Burndy YA38LNT12FX 500 kcmil H,I,K / 550 kcmil G,H,I,535 DLO CU, One Hole, 1/2 Stud Size, Standard Barrel, Inspection Window, Narrow Tongue Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Pink Color Code, L99 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YA38LNT12FX | Codale Part # 4231847
$130.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Flex Conductor Standard Barrel Narrow, 535.3 kcmil 1325/24 500 Flex, 1/2 in, 3.41 in L.

Technical Information

Applications
For Flex Conductor
Color Coding
Pink
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Type
YAV-L-NTFX
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Terminals, HYLUG

General Product Info

12-Digit UPC
781810137468
Color
Pink
Finish
Tin Plated
Product UPC
78181013746
Weight
0.4800 lb

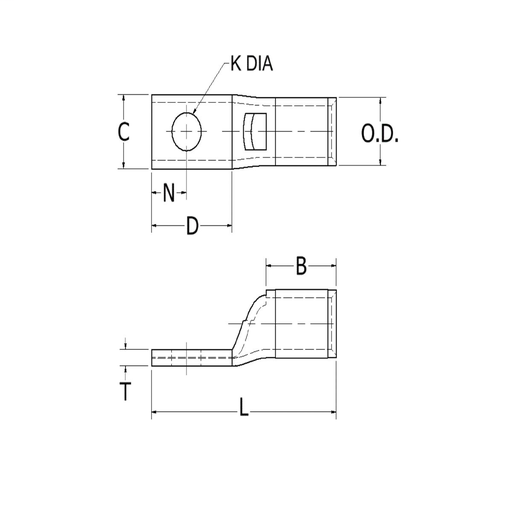

Dimensions

Height
1-1/4 Inch
Length
3.41 Inch
Overall Length
3.41 in
Width
1.63 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available,Tongue Angle: Straight
