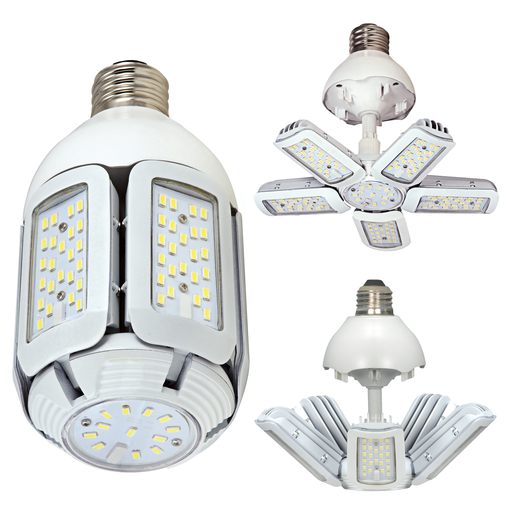

Satco S29750 30 Watt LED HID Replacement; 5000K; Medium base; Adjustable beam angle; 100-277 Volt

Manufacturer: SATCO Lighting | Catalog # S29750 | Codale Part # 4232247
$110.71/ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
30W LED HID Replacement; 5000K; Medium base; Adjustable beam angle; 100-277V

Technical Information

Amperage
0.300-0.108 Amp
Average Rated Life
50000 hr
Base
Medium
Beam Angle
360
Beam Spread
360
Bulb Shape
Corncob
Color Accuracy
80+
Color Rendering Index
80+
Color Temperature
5000 K
Correlated Color Temp
5000 K
Dimmable?
No
Incandescent Equivalent
200 W
IP Rating
IP65
Lens Color
Clear
Lumens
3,900 Lumen
Operating Frequency
50 Hz
Operating Temperature
-13 degrees F
Power Factor
0.9
Size
MOL: 6.38, MOL: 3.19 IN
Tc Connection
Medium
Technology Type
LED
Temperature Rating
-20 to 40 degrees C
Type
Corncob
Voltage
100 Volt
Wattage
30 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923297502
Color
White
Finish
Clear
Fixture Type
Corncob Lamp
Housing Color
White
Product UPC
04592329750
Weight
1.37 lb

Dimensions

Diameter
3.19 Inch
Height
11 Inch
Warranty Length
5 yr
Width
8 in

Certifications and Compliance

Country of Origin
China
Ballasting Requirements
  • Ballast Bypass
Features
  • Width 360 deg 3.2 in.
  • Width 270 deg 6.8 in.
  • Width 180 deg 7.7 in.
Installation Notes
  • Not for use in vapor tight fixtures. Arms fully open diameter is 7.69 inches
