Panduit ISTPHCH10MTL IndustrialNet™ Category 5e Shielded 600 V-Rated Patch Cord

Manufacturer: Panduit | Catalog # ISTPHCH10MTL | Codale Part # 4233914
$247.18/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet

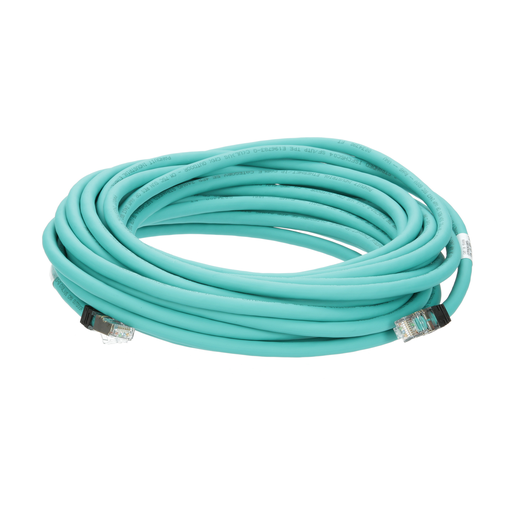

The IndustrialNet™ Cat 5e Shielded Patch Cord is constructed of industrial grade, 24 AWG, SF/UTP, twisted pair, stranded, CM cable with industrial bulkhead shielded modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 10 meters in length and teal.

Technical Information

Applications
(1) 10BASE-T (Ethernet) (2) 100BASE-T (Fast Ethernet) (3) 1000BASE-T (Gigabit Ethernet) (4) Industrial Ethernet (5) Ethernet/IP (6) Control Panel deployments featuring power source voltages (7) Uplinks featuring gigabit data transmission from the control p
Cable Type
24 AWG SF/UTP
Conductor Size
24 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
IP Rating
IP20
Max Operating Temperature
70 degrees C
Min Operating Temperature
-20 degrees C
Performance Level
Category 5e
Plug Type
Modular Plug
Type
Industrial, Category 5e, Shielded
Wire Size
24 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
IndustrialNet™

General Product Info

12-Digit UPC
074983848706
Color
Teal
Jacket Material
Thermoplastic Elastomer
Product UPC
07498384870
Weight
1.7900 lb

Dimensions

Cable Length
10 m
Length
32.8 Foot
Outer Diameter
7.1 mm
Outside Diameter
0.28 in
Overall Length
10 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards at swept frequencies up to 100MHz; Meets ODVA Ethernet/IP electrical and mechanical performance requirements; Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7, UL 1863; Rated IP20; Meets IEEE 802.3af and IEEE 802.3at for PoE applications; UL AWM Style 2463; RoHS Compliant
