Hubbell HBL69W76 30 Amp 480 Volt 3-Phase 3-Pole 4-Wire NEMA L16-30 Yellow Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL69W76 | Codale Part # 4234024
$107.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

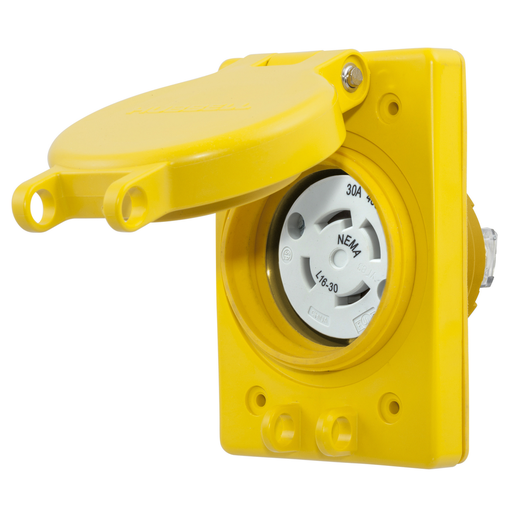

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-30R, Yellow

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Body Material
PBT
Conductor Size
18-8 AWG
Contact Material
Nickel Plated Brass
Current
30 Amp
Dielectric Strength
3500 VAC
Grade
Industrial
Material
PBT
Mounting Type
Flush
NEMA

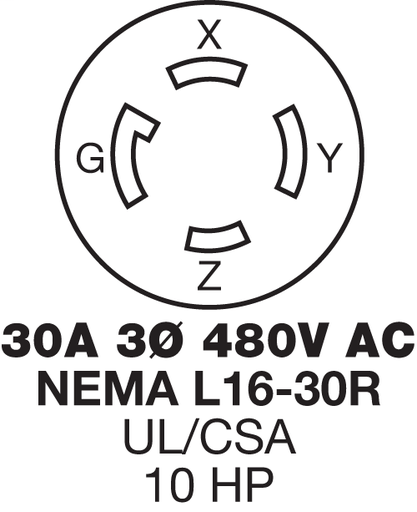

L16-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

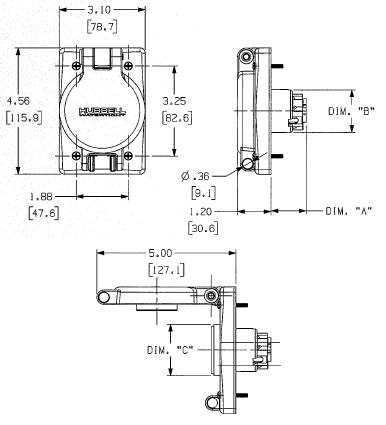

4.56 in x 3.10 in x 2.92 in
Standard
ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 to 60 degrees C Continuous
Type
Receptacle
Voltage
480 Volt
Wattage
14400/14400.0000 Watt;Watt
Wire Count
4
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585433295
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358543329
Weight
0.3000 lb

Dimensions

Height
2.92 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
