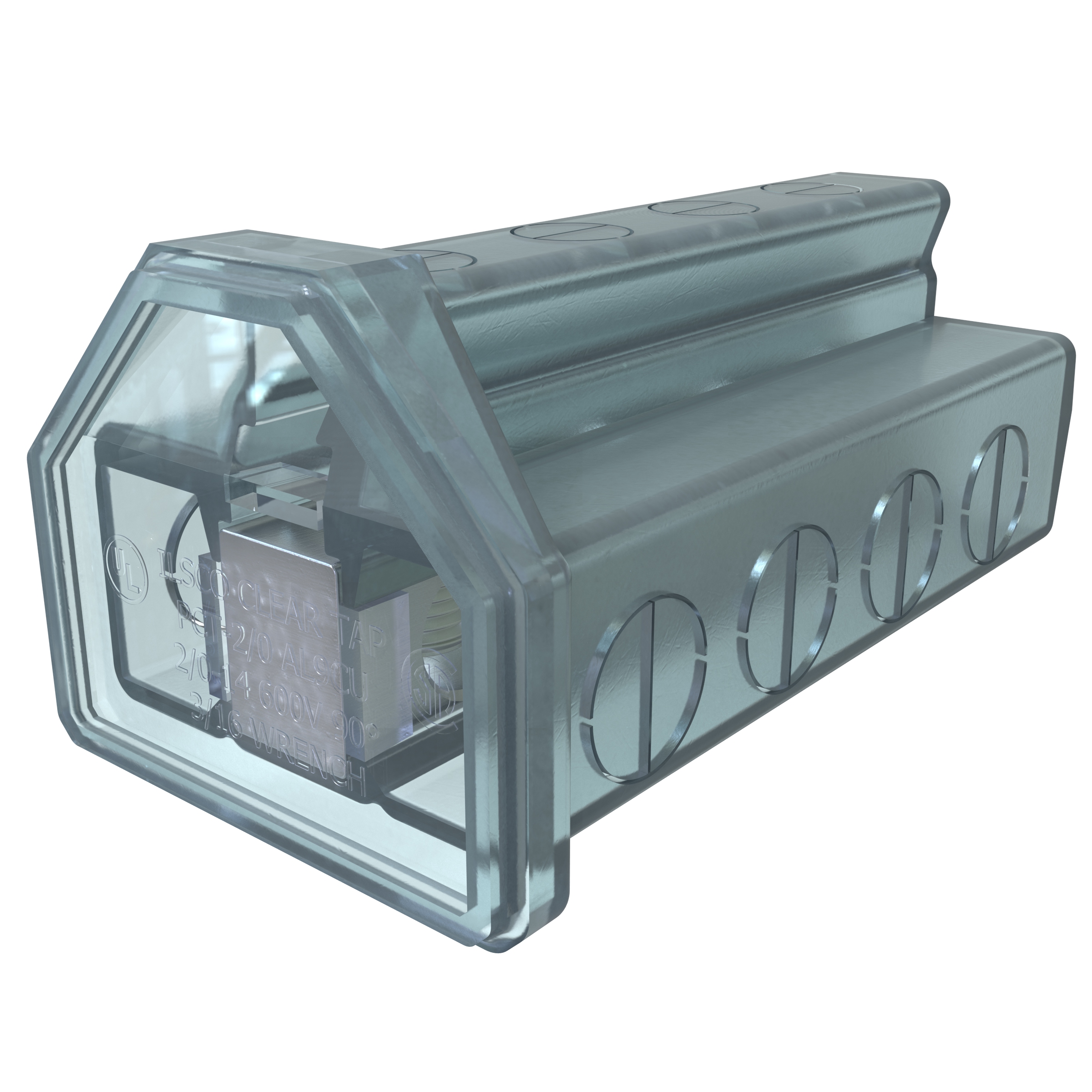

Ilsco PCT-4-2/0 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 2/0-14, 4 Ports, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PCT-4-2/0 | Codale Part # 423491
$89.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2/0 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 4 conductors, 4 ports/wireways, Plastisol insulation, Drive Type Main 3/16 Internal Hex, rated for 600 V, primary color Clear, 1 poles,

Technical Information

Amperage
CU:195
Applications
Connecting Tap
Conductor Material
Aluminum,Copper
Conductor Size
14-2/0 AWG
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
4
Number of Ports
4
Standard
CSA,E2186,UL
Stud Size
3/16 in
Tc Connection
Mechanical
Temperature Rating
-45 to 90 degrees C
Type
PCT, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearTap®

General Product Info

12-Digit UPC
783669700428
Color
Clear
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366970042
Weight
0.406 lb

Dimensions

Height
1.919 Inch
Length
4.115 Inch
Width
2.252 in
