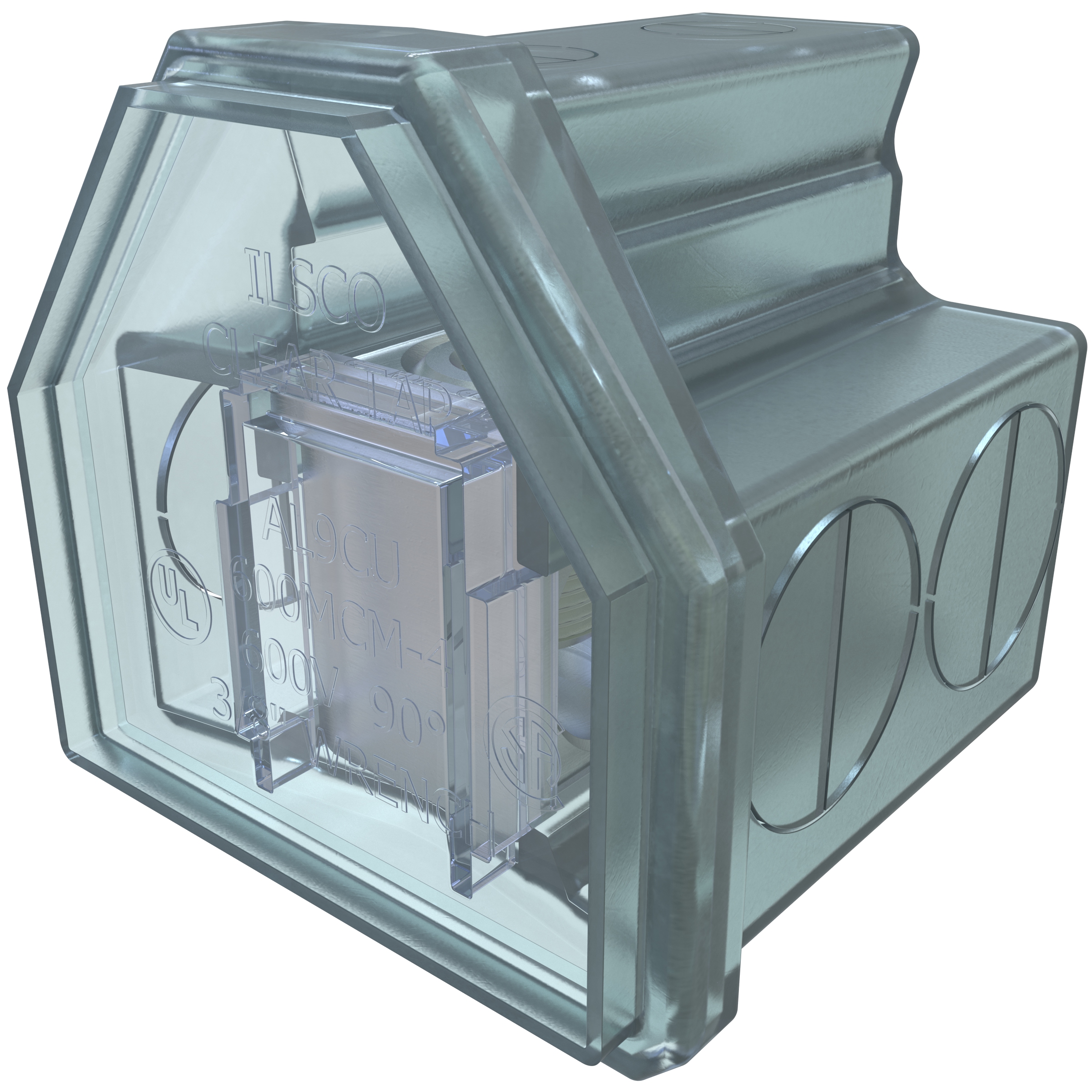

Ilsco PCT-2-600 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 600-2, 2 Ports, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PCT-2-600 | Codale Part # 423502
$175.54/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 600 kcmil - 4 Str, Contains DE-OX®, 2 conductors, 2 ports/wireways, Plastisol insulation, Drive Type Main 3/8 Internal Hex, rated for 600 V, primary color Clear, 1 poles,

Technical Information

Amperage
CU:475
Applications
Connecting Tap
Conductor Material
Aluminum,Copper
Conductor Size
4 AWG-600 kcmil
Conductor Type
Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
2
Standard
CSA,E2186,UL
Stud Size
3/8 in
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PCT, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearTap®

General Product Info

12-Digit UPC
783669700640
Color
Clear
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366970064
Weight
0.979 lb

Dimensions

Height
3.115 Inch
Length
3.248 Inch
Width
3.147 in
