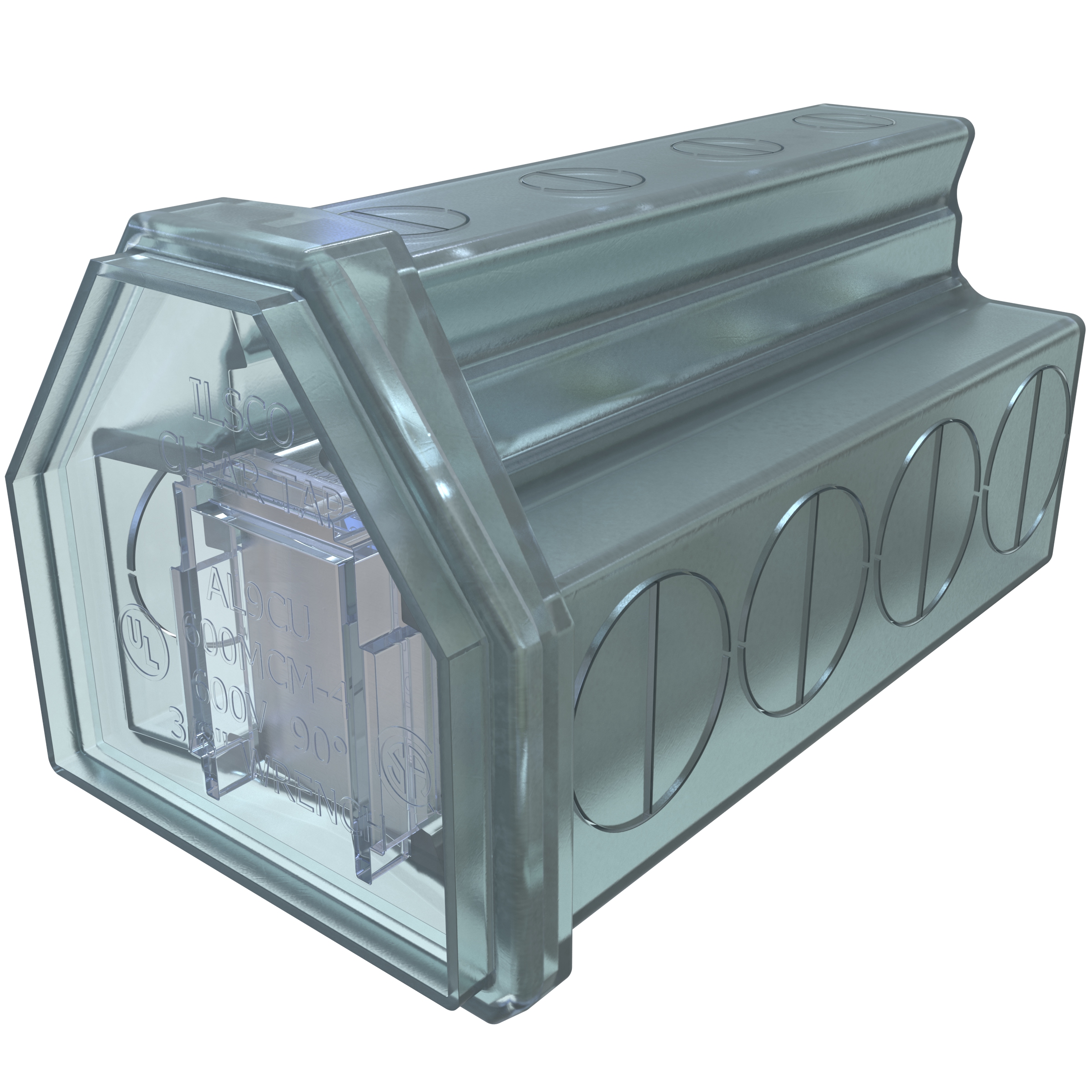

Product image for Ilsco PCT-4-600 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 600-2, 4 Ports, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco PCT-4-600 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 600-2, 4 Ports, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PCT-4-600 | Codale Part # 423503
$187.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 600 kcmil - 4 Str, Contains DE-OX®, 4 conductors, 4 ports/wireways, Plastisol insulation, Drive Type Main 3/8 Internal Hex, rated for 600 V, primary color Clear, 1 poles,

Technical Information

Amperage
CU:475
Applications
Connecting Tap
Conductor Material
Aluminum,Copper
Conductor Size
4 AWG-600 kcmil
Conductor Type
Aluminum/Copper
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
4
Number of Ports
4
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
-45 to 90 degrees C
Type
Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearTap®

General Product Info

12-Digit UPC
783669700664
Color
Clear
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366970066
Weight
1.206 lb

Dimensions

Height
3.115 Inch
Length
5.81 Inch
Width
3.147 in
