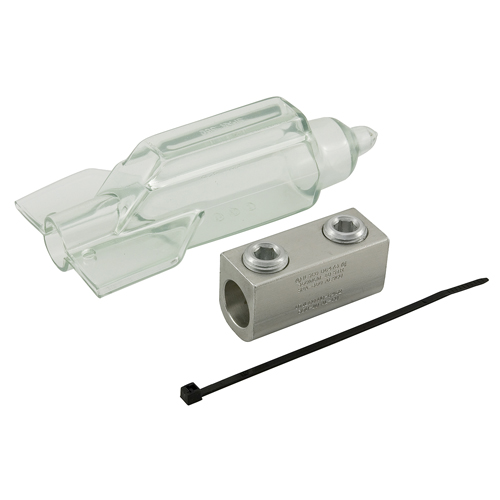

Product image for Ilsco SPAR-4 RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 4-14, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco SPAR-4 RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 4-14, UL, CSA

Manufacturer: Ilsco | Catalog # SPAR-4 | Codale Part # 423508
$32.51/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Rocketsplice Insulated Splicer-Recducer Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 4 Str - 14 Str, 2 conductors, Plastisol insulation, Drive Type Main Slotted, rated for 600 V, primary color Clear, 1 poles,

Technical Information

Applications
Insulated Splicer-Recducer Connector
Conductor Material
Aluminum,Copper
Conductor Size
14-4 AWG
Conductor Type
Aluminum
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Number of Conductors
2
Number of Ports
1
Tc Connection
Mechanical
Temperature Rating
-45 to 90 degrees C
Type
SPAR:SPLICER/REDUCER INS.
Voltage
600 Volt

Packaging

Pkg Qty
12

Manufacturer Information

Brand
Ilsco
Sub Brand
RocketSplice®

General Product Info

12-Digit UPC
783669857207
Color
Clear
Finish
Tin Plated
Product UPC
78366985720
Weight
0.072 lb

Dimensions

Height
0.888 Inch
Length
3.378 Inch
Width
1.529 in
