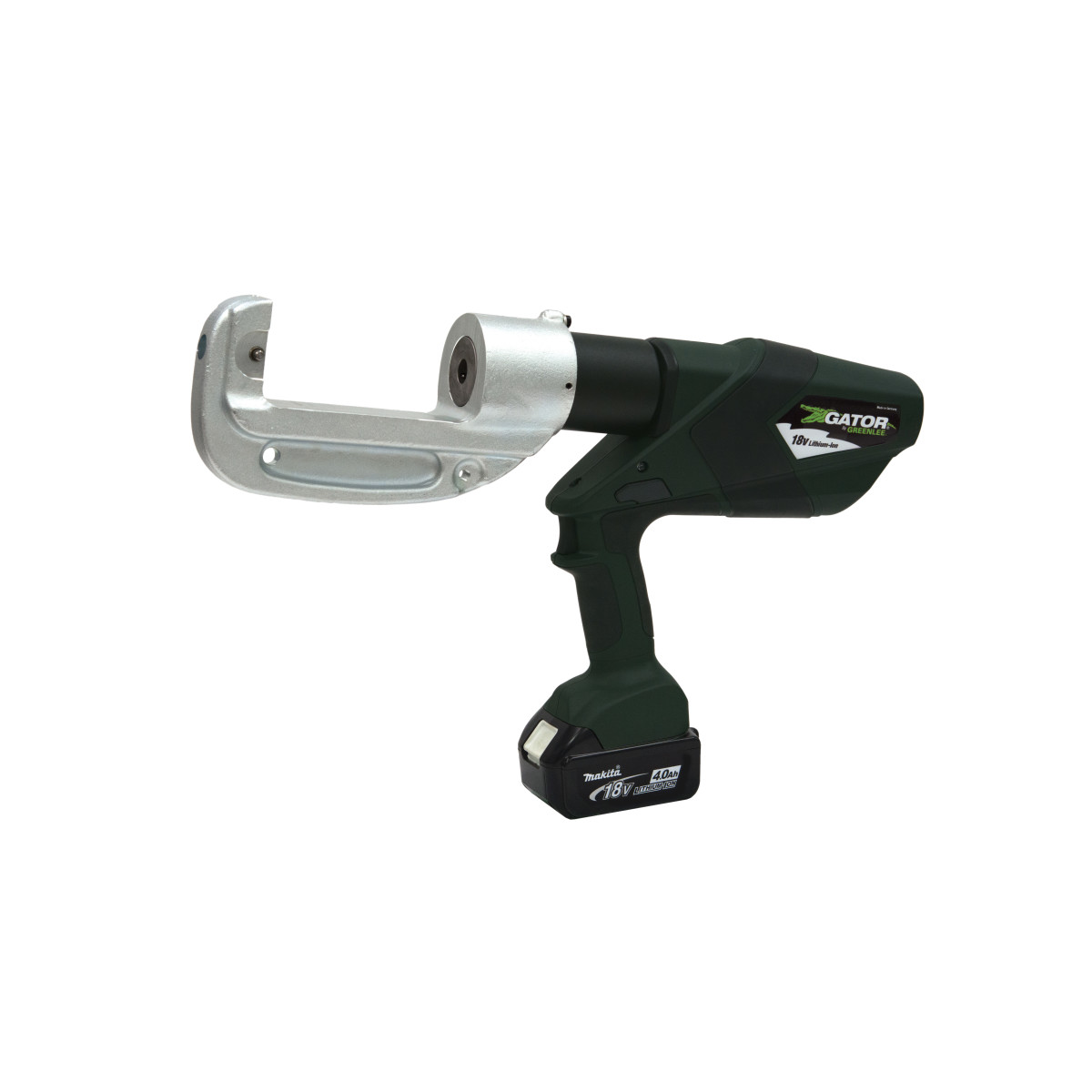

Greenlee EK1550LX11 15 Ton Crimper Flip T, Li-Ion, Standard, 120V

Manufacturer: Greenlee | Catalog # EK1550LX11 | Codale Part # 4235978

$24,417.38/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Gator® 15-Ton Battery-Powered Crimping Tool with 120V Charger. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350.. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. Interchangeable adapters permit the use of a wide variety of crimping dies. Accepts Kearney PH4/P14 dies without adapter. Assist handle is included to provide better balance for the tool. Head will allow crimping of 8 AWG - 1000 KCMIL (MCM) Color Coded Copper and Aluminum Lugs and Splices.

Technical Information

Applications
15 Ton Crimping
Conductor Size
1000 kcmil
Connector Type
Color-coded lugs and splices
Crimping Force
30,000 lb
Handle Type
Pistol Style with Over Molded Rubber Grip
Standard
C/US UL Listed
Type
Die Style, Standard
Wire Size
8-1000 MCM Cu & Al

Manufacturer Information

Brand
Greenlee
Sub Brand
Gator®

General Product Info

12-Digit UPC
783310610700
Product UPC
78331061070
Weight
21.0000 lb

Dimensions

Overall Length
19.625 in

Certifications and Compliance

Country of Origin
Germany
Features
  • This cable crimper comes equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app
  • Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
Application
  • 15 Ton Crimping
