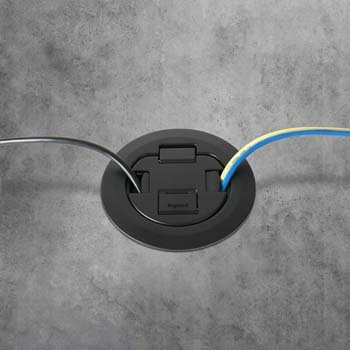

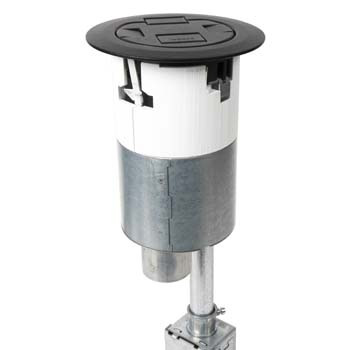

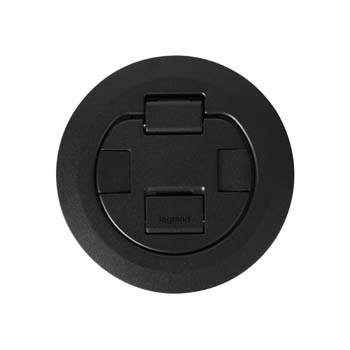

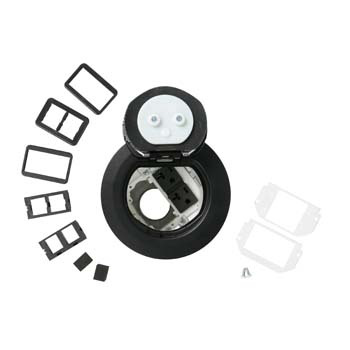

Product image for Wiremold 4ATCP2RBK 4AT-Series Prewired Dual Service Evolution™ Poke-Thru Device-Black
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Wiremold 4ATCP2RBK 4AT-Series Prewired Dual Service Evolution™ Poke-Thru Device-Black

Manufacturer: Legrand Wiremold | Catalog # 4ATCP2RBK | Codale Part # 4236601
$944.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual CAD Drawing #1
Designed for retrofit and new construction, Evolution Series 4'' Recessed Poke-Thru devices provide convenient access to power, communications, and audio/video services recessed below floor level - providing maximum device protection. With 2 Gangs of capacity, you will be able to configure services for the needs of your space. The low-profile metal covers are available in brushed aluminum, satin brass, satin nickel, and multiple powder-coated finishes designed to match any space. Evolution Series 4'' Poke-Thru devices are the perfect fit for kiosks, training rooms, classrooms, healthcare facilities or commercial buildings with open-space architecture.

Technical Information

Applications
Commercial
Cable Entry
3/4 In Trade Size Conduit For Power, 1 1/2 In Trade Size Conduit For Data
Material
Aluminum
Number of Outlets
2
Size
4 in core hole diameter, 5 1/2 in cover diameter, 18 9/16 in depth
Type
Poke-Thru

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786564090632
Color
Black
Construction
Assembled
Product Series
Evolution
Product UPC
78656409063
Weight
6.14 lb

Dimensions

Depth
18.56 Inch
Diameter
5-1/2 Inch
Height
5-1/2 Inch
Width
5.5 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS,NAFTA,ROHS
Country of Origin
USA
Features
  • Prewired assembly: Save on labor with a completely assembled, prewired poke-thru .
  • Controlled receptacles: The only option on the market with two marked receptacles in a 4'' poke-thru that also meets Title 24 Plug Load Control standards.
  • Recessed devices: All power, communications and A/V devices are recessed below floor level, providing maximum protection and device longevity.
  • Step-on-it installation: Quick and easy installation without the need for additional fasteners or a second installer.
  • Unique cover design: The cover opens a full 180 degrees with two unique spring-loaded slide egress doors to keep wires, connections and people safe.
  • Evolution Series Poke-Thru Devices are available in multiple finishes, (BK) black, (GY) gray, (NK) nickel, (BS) brass, (BZ) bronze, (AL) aluminum, (AA) brushed aluminum, (SB) satin brass, and (SN) satin nickel to seamlessly match your environment.
  • Surface style cover assemblies: A surface style cover is for mounting on top of the finished floor surface. The surface cover is designed to be used for carpet, tile, wood, polished concrete, or terrazzo.
  • Open system for expanded compatibility: Accepts industry standard power, communications and A/V devices from most manufacturers including Legrand AVIP, Extron® and more.
  • 2 hour fire rating: Evolution Series Poke-Thru Devices use an intumescent material that maintains the fire rating of any floor for up to 2 hours.
  • Wide trim flange is designed to meet the ADA Accessibility Guidelines as it pertains to ADA Standard 4.5 which addresses changes in floor and ground surface levels. The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio.
  • UL Listed and UL fire classified to U.S. and Canadian safety standards: UL Fire rated for up to 2-hour rated floors maintains the fire classification of the floor.
Certifications
  • RoHS Compliant
  • cULus Listed
