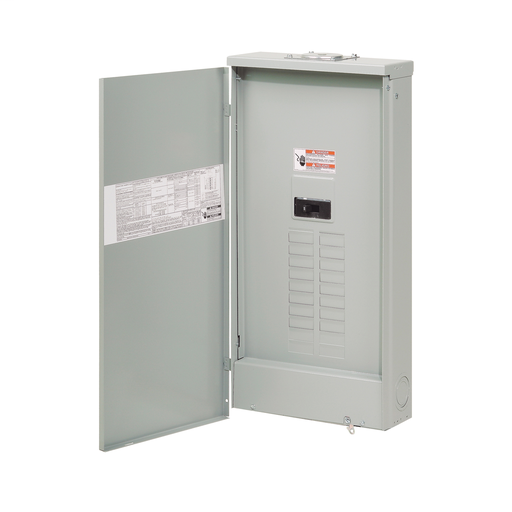

Image thumbnail 1

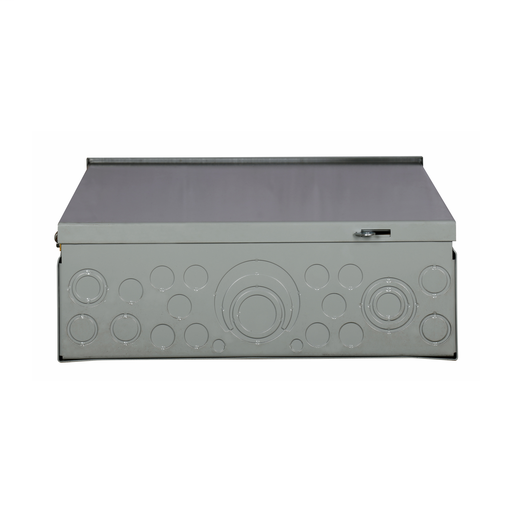

Image thumbnail 2

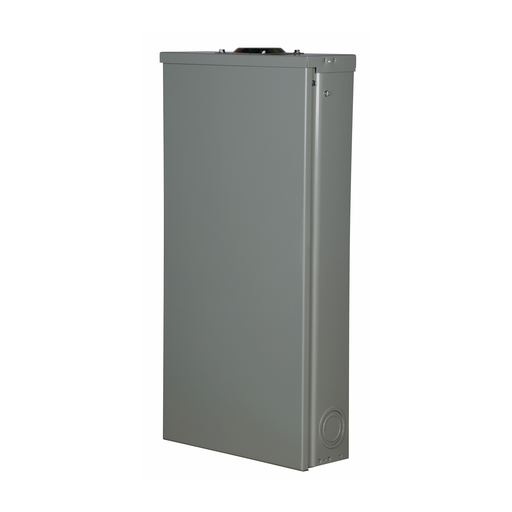

Image thumbnail 3

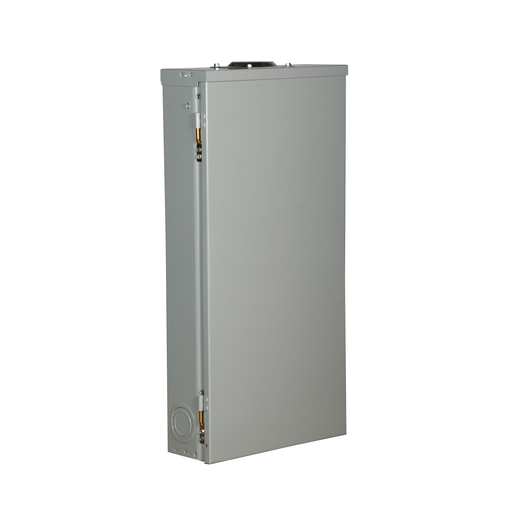

Image thumbnail 4

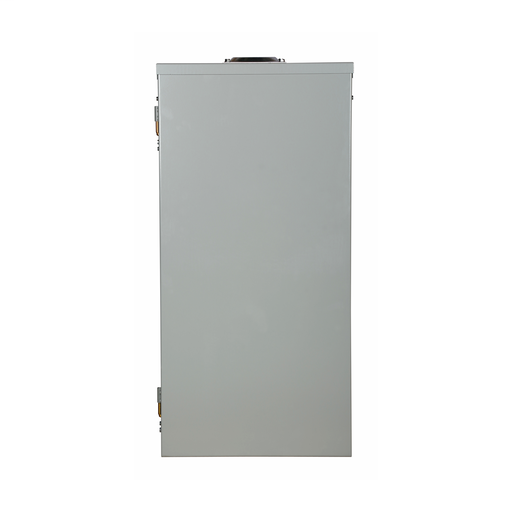

Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Email

Eaton Electrical BR2040B200R 120/240 VAC 200 Amp 1-Phase 3-Wire 1 Inch Main Breaker Load Center

Manufacturer: Eaton Cutler-Hammer | Catalog # BR2040B200R | Codale Part # 423735
$641.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
BR style 1-inch loadcenter, main circuit breaker, no feed-thru lugs, 200A, single-phase, 40-pole, 40 circuits, 20 spaces, 120/240V, #2/0-300 kcmil Cu/Al at 60.C or 75.C wire, NEMA 3R enclosure, d1r box size

Technical Information

Amperage
200 Amp
Bus Material
Aluminum
Conductor Size
2/0 AWG
Cover Type
Cover included
Enclosure
3R
Enclosure Material
Metal
Interrupt Rating
25 kAIC
NEMA Size
3R
Number of Circuits
40
Number of Phases
1 Phase
Number of Spaces
20
Number of Wires
3 Wire
Size
D1r
Type
Main Circuit Breaker
Voltage
120/240 Volt
Wire Size
300 kcmil

Manufacturer Information

Brand
Cutler-Hammer Manufacturing Co.

General Product Info

12-Digit UPC
786676445757
Product UPC
78667644575
Weight
35.13 lb

Dimensions

Height
21 Inch
Length
3.88 Inch
Width
14.31 in
