PAN UTP28X15BU Cat 6A 28 AWG UTP Co

Manufacturer: Panduit | Catalog # UTP28X15BU | Codale Part # 4238129
$89.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

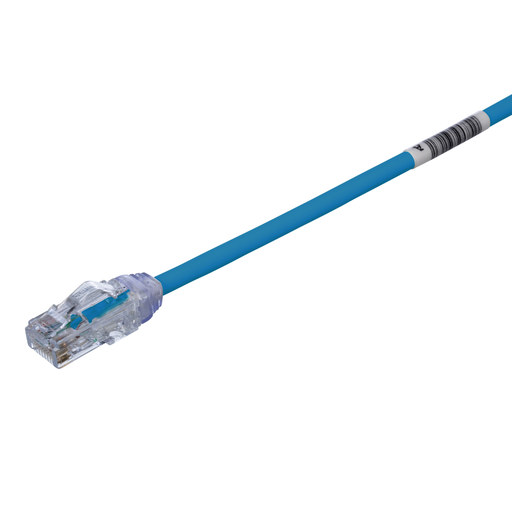

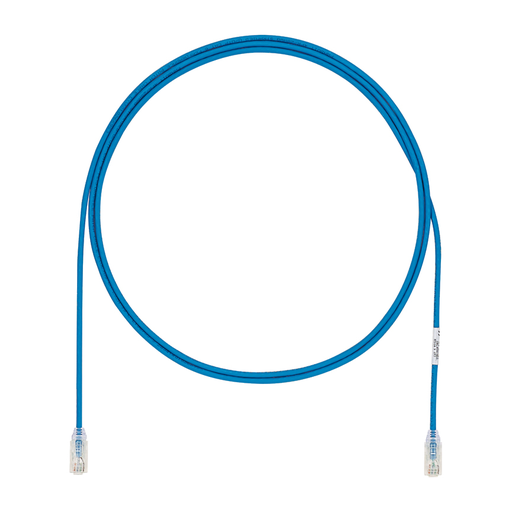

The TX6A-28™ Cat 6A UTP Patch Cord is constructed of 28 AWG, unshielded, twisted pair, solid, CM/LSZH cable with enhanced performance modular plugs. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 15 feet in length, 0.185 inches (4.7mm) nominal in diameter, and blue.

Technical Information

Applications
(1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5)Parallel processing and high speed computing.
Boot Color
Clear
Cable Type
28 AWG F/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Solid
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
167 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 6A
Plug Type
Modular Plug with Bulkhead and Dust Cap
Standard
ANSI\IEEE (Category C-62.41, C-62.45),CULus Listed (1449),NEMA
Temperature Rating
167 ??degrees F
Type
Category 6A, Unshielded
Wire Size
28 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983063680
Color
Blue
Jacket Material
LSZH Material
Product UPC
07498306368
Weight
0.2700 lb

Dimensions

Cable Length
4.6 m
Length
15 Inch
Outer Diameter
0.19 in
Outside Diameter
4.7 mm
Overall Length
15 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Costa Rica,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MH, Meets ANSI/TIA-1096-A (formerly FCC Part 68),Meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 andtype 4 (24 cables in a bundle) PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS compliant.type 4 (24 cables in a bundle) PoE compliant.
