Greenlee EK410LX11 CRIMPER, 4T LI, STD, 120V

Manufacturer: Greenlee | Catalog # EK410LX11 | Codale Part # 4239321

$8,437.67/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

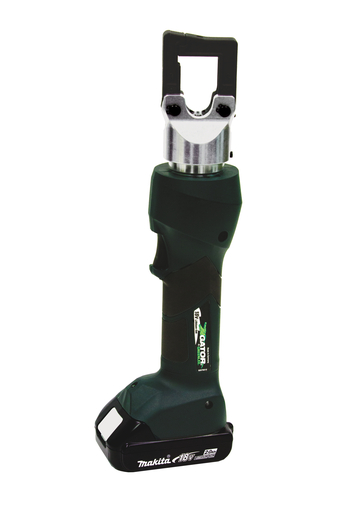

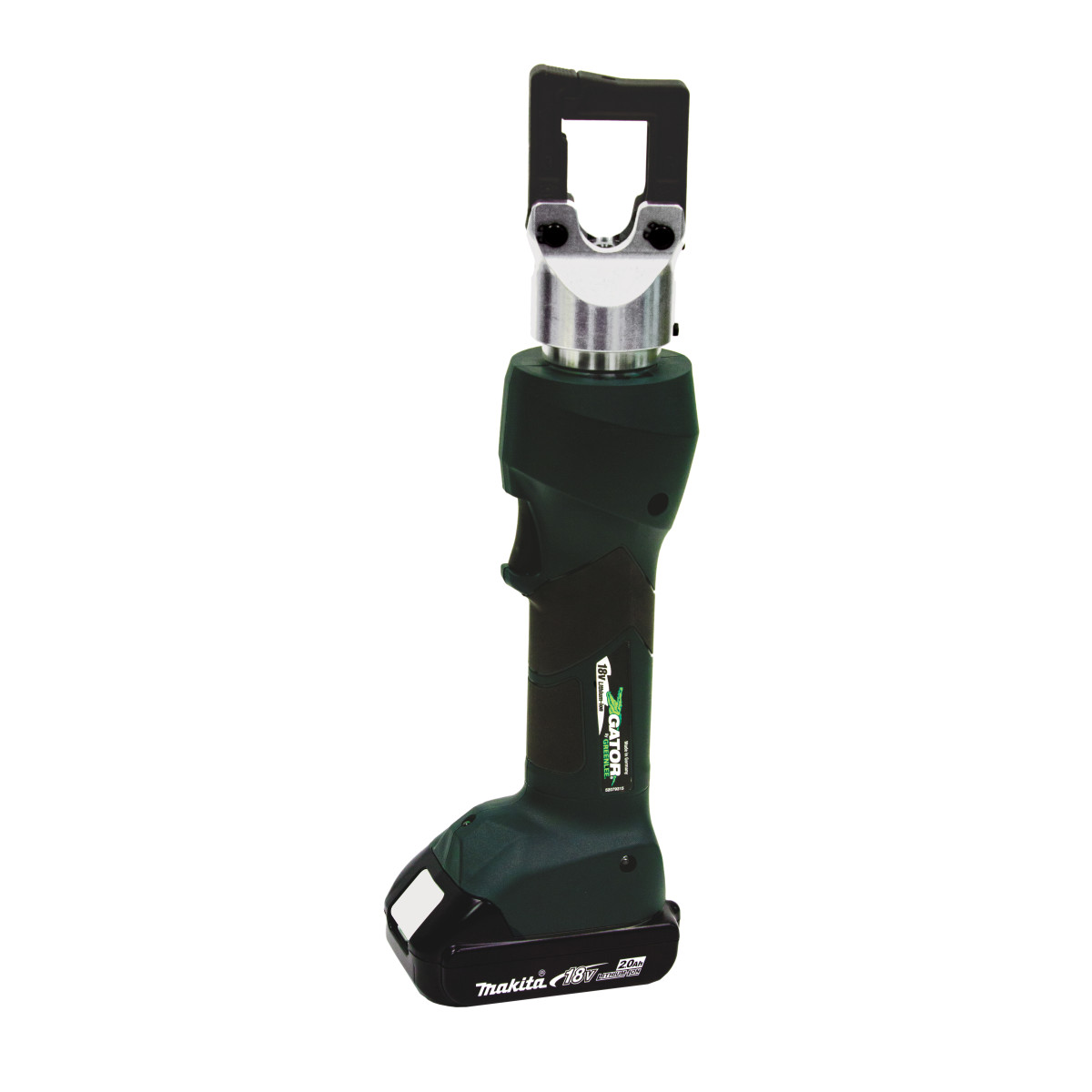

Gator® 4 Ton Battery-Powered Die Type Crimping Tool with 120V Charger. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. LED light provides the operator with the battery charge and tool maintenance status. In line tool style is light weight and very easy to control. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping or cutting cycle is complete. Over molded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Used with Greenlee KC4, KA4 and KD4 crimping dies. For crimping of 8 AWG - 300 KCMIL (MCM) copper and 8-2/0 AWG aluminum.

Technical Information

Applications
4 Ton Crimping
Battery Type
Lithium-Ion
Conductor Size
8-2/0 AWG (AL)/8 AWG-350 kcmil (CU)
Connector Type
Color-coded lugs and splices
Crimping Force
7,900 lb
Handle Type
In-Line Style with Over Molded Rubber Grip
Standard
C/US UL Listed
Type
Die Style, Standard
Voltage
120 Volt
Wire Size
8 AWG-300 MCM Cu, 8 AWG-2/0 MCM Al

Manufacturer Information

Brand
Greenlee
Sub Brand
Gator®

General Product Info

12-Digit UPC
783310609278
Product UPC
78331060927
Used With
Color-Coded Lugs and Splices
Weight
29.0000 lb

Dimensions

Overall Length
13.25 in

Certifications and Compliance

Country of Origin
Germany
Features
  • Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • LED light provides the operator with the battery charge and tool maintenance status
  • In Line tool style is light weight and very easy to control
  • One trigger controls all tool functions
  • Crimping head rotates 350°
Application
  • 4 Ton Crimping
