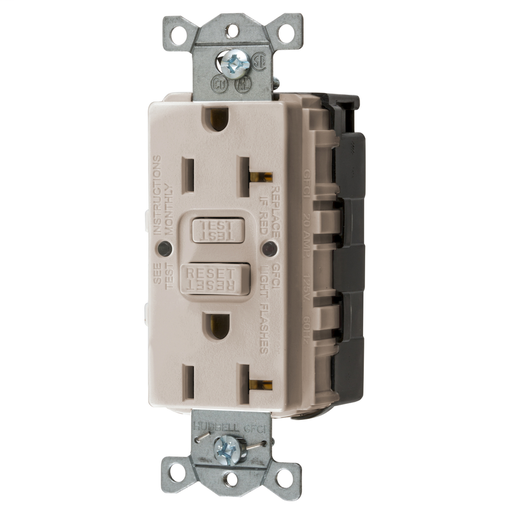

Hubbell GFRST20SNAPLA20A COMM SELF TEST SNAP GFR LT ALMOND

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFRST20SNAPLA | Codale Part # 4239632
$33.34/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straght Blade Devices, SNAP-Connect, AUTOGUARD, Self Test, GFCI Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Light Almond

Technical Information

Amperage
20 Amp
Applications
Limits Duration and Magnitude of Shock
Conductor Size
14-12 AWG
Connection Type
Pre-Wired
Current
20 Amp
Grade
Commercial
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.28 in x 1.77 in x 1.47 in
Standard
NEC®
Style
Standard
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
Self-Test
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SnapConnect®

General Product Info

12-Digit UPC
883778124556
Color
Light Almond
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Heavy Duty
Product UPC
88377812455
Weight
0.3500 lb

Dimensions

Height
1.47 Inch
Length
3.28 Inch
Width
1.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Audible SNAP, indicates solid connection
  • SNAP Connect, Self Grounding, AUTOGUARD Self test Technology
  • Patented shutter design for tamper-resistant
  • Compliant with NEC® 406.12 and NEC® 517-18(c)
  • Patented AUTOGUARD® self test technology
  • Triple wipe construction
