PAN NK6APC7 NetKey® Cat 6A 26 AWG U

Manufacturer: Panduit | Catalog # NK6APC7 | Codale Part # 4239712
$56.34/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet

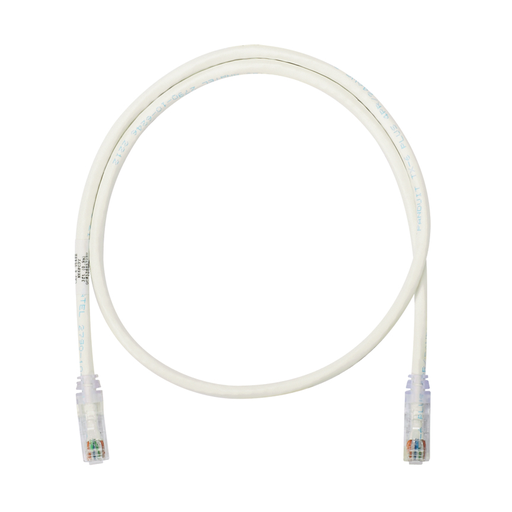

The NetKey® Cat 6A UTP Patch Cord is constructed of 26 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord.s slender strain relief boot provides easy access in high-density applications. The patch cord is 7 feet in length and off white.

Technical Information

Applications
10GBASE-T Ethernet, Wireless Deployment, Power Over Ethernet and Video Streaming
Boot Color
Clear
Cable Type
26 AWG F/UTP
Conductor Size
26 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 6A
Plug Type
Modular Plug
Temperature Rating
14 - 140 degrees F
Type
Category 6A
Wire Size
26 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983962129
Color
Off-White
Jacket Material
LSZH Material
Product UPC
07498396212
UNSPSC
43223303
Weight
0.2800 lb

Dimensions

Cable Length
7 ft
Length
7 Inch
Outer Diameter
0.25 in
Outside Diameter
0.25 In.
Overall Length
7 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Costa Rica,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
