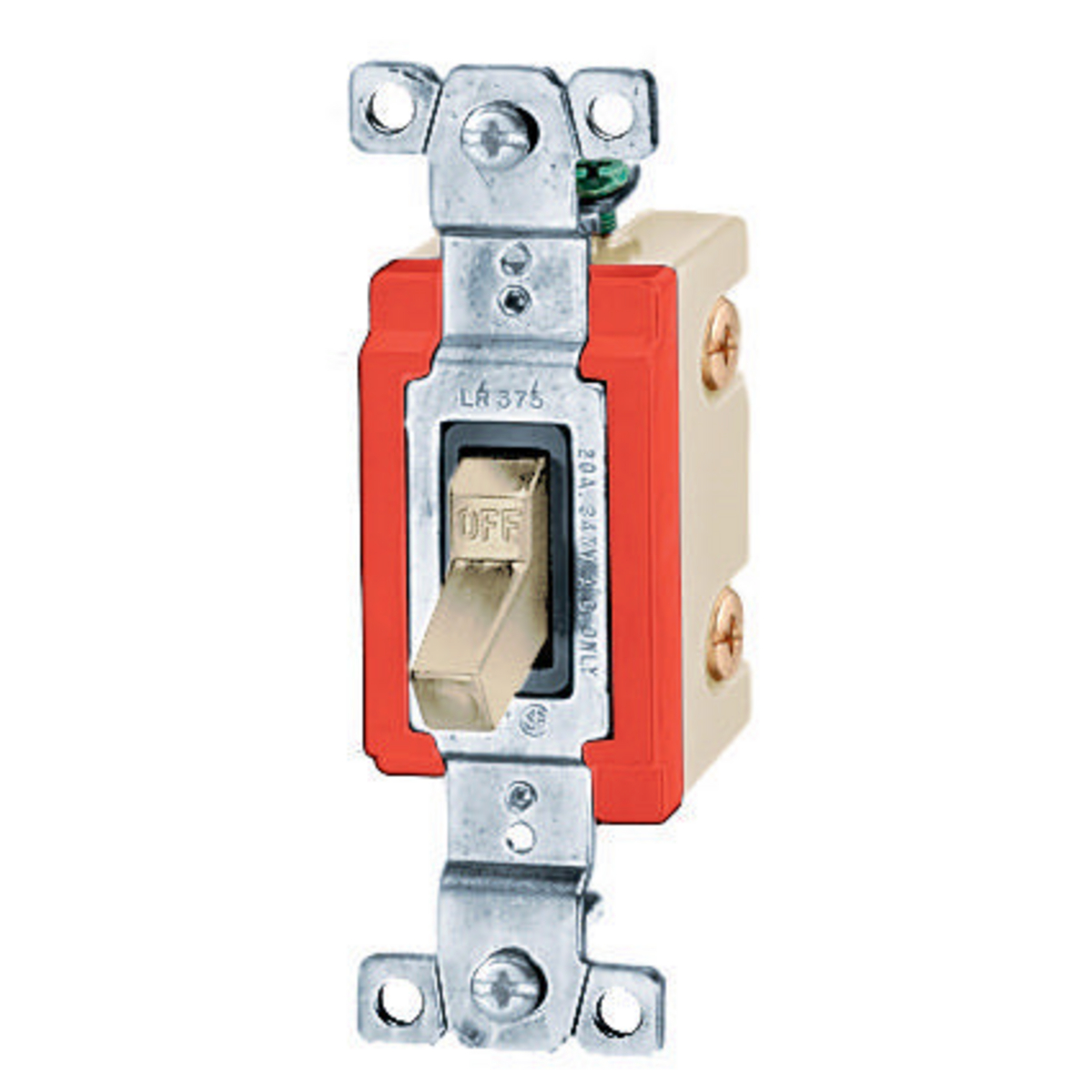

Product image for Hubbell HBL18204ICN4 WAY TOG, IND GRD, 15A 347V, IV
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL18204ICN4 WAY TOG, IND GRD, 15A 347V, IV

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL18204ICN | Codale Part # 4239791
$104.47/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Four Way, 15A 347V AC, Terminal Screws, Ivory

Technical Information

Action
Positive Snap
Actuator
Toggle, Rocker/Button
Amperage
15 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
15 Amp
Enclosure
None
Grade
Industrial
Material
Thermoplastic
Number of Poles
2-2 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Style
Four Way
Tc Connection
Back and Side Wired
Type
General Purpose, 2-Position, 4-Way, Extra Heavy Duty, Standard
Voltage
347 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585924724
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Extra Heavy Duty
Product UPC
78358592472
Weight
0.2 lb

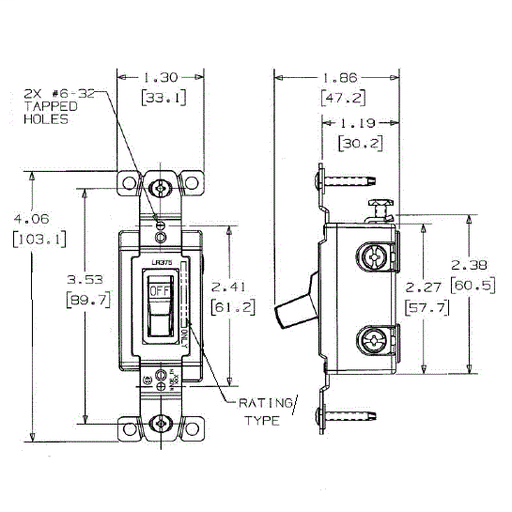

Dimensions

Height
1.86 Inch
Length
4.06 Inch
Width
1.3 in

Certifications and Compliance

Country of Origin
USA
Features
  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
