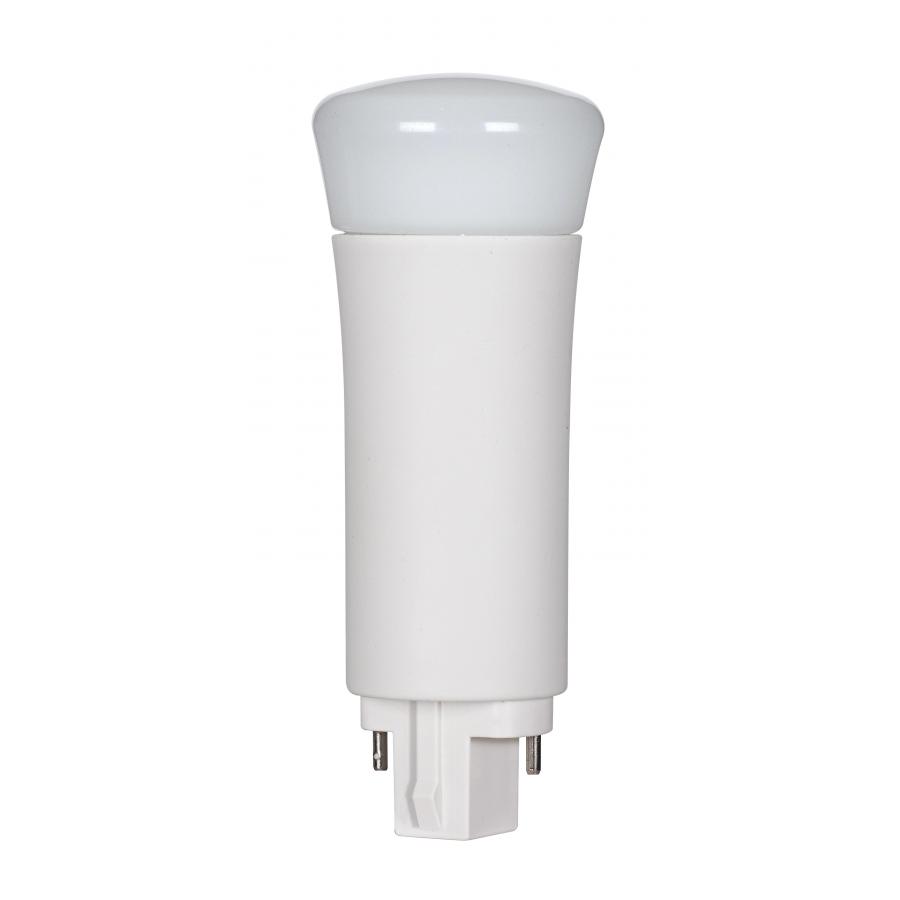

Product image for Satco S8538 9 Watt LED PL 2-Pin; 4000K; 1000 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Vertical; Type B; Ballast Bypass
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Satco S8538 9 Watt LED PL 2-Pin; 4000K; 1000 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Vertical; Type B; Ballast Bypass

Manufacturer: SATCO Lighting | Catalog # S8538 | Codale Part # 4241605
$25.85/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
9W LED PL 2-Pin; 4000K; 1000 Lumens; G24d base; 50000 Average rated hours; 120 Deg. beam spread; Vertical; Type B; Ballast Bypass

Technical Information

Amperage
0.075-0.032 Amp
Average Rated Life
50000 hr
Base
G24d (2-Pin)
Beam Angle
120 DEG
Beam Spread
120
Bulb Shape
PL
Color Accuracy
82
Color Rendering Index
82
Color Temperature
Cool White
Correlated Color Temp
4000 K
Dimmable?
No
Incandescent Equivalent
40 W
Lens Color
Frost
Lumens
1,000 Lumen
Operating Frequency
50 Hz
Operating Temperature
-20 degrees C
Power Factor
0.99
Technology Type
LED
Type
PL
Voltage
120 Volt
Wattage
9 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923085383
Finish
Frosted
Product UPC
04592308538
Weight
0.24 lb

Dimensions

Diameter
1.91 Inch
Length
4.69 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Ballasting Requirements
  • Ballast Bypass- Direct wire only 100V-277V
Installation Notes
  • 2-pin LED lamps work in both 2-pin (magnetic) and 4-pin (electronic) sockets.
