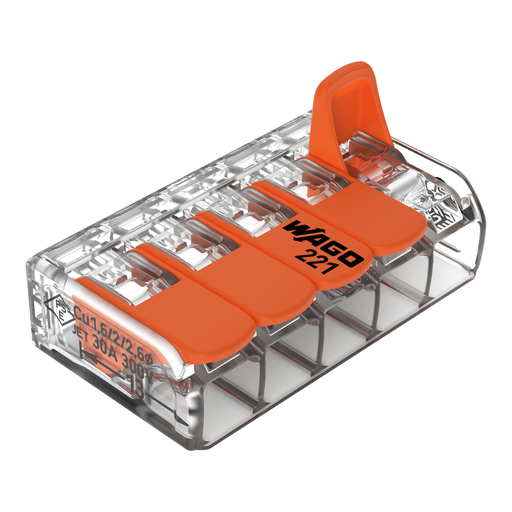

Wago 221-615 5-Conductor #10 AWG Push-In LEVER-NUTS® Wire Splicing Connector, #20-#10 Solid/Stranded, Clear w/Orange Lever (Box of 15)

Manufacturer: Wago Wire Connectors | Catalog # 221-615 | Codale Part # 4242606
$38.17/ea
ea
Log in or register to view your price, purchase history, and more!
156 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
COMPACT Splicing Connector for all conductor types; maximum 6 mm., 5-conductor, with levers, transparent housing, surrounding air temperature: max 85.C (T85); 6 mm.; transparent. Connection of all conductor types. Time savings for installers and device manufacturers. Quickly install devices with higher power consumption. Safely install long cable runs with larger conductor cross sections. Mounting carrier for installation conforms to standards. Custom carriers are possible.

Technical Information

Actuator
Lever
Conductor Material
Copper
Conductor Size
10 AWG
Current
41 Amp
Flamability Class
V2
Insulation Material
Polycarbonate
Number of Connections
5
Operating Temperature
105 degrees C
Strip Length
0.55 in

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
551437183878
Color
Transparent
Weight
7.130 g

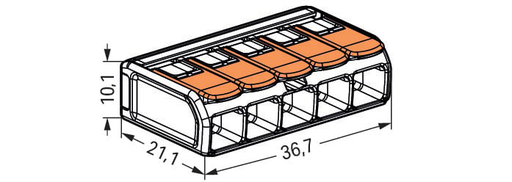

Dimensions

Depth
0.831 Inch
Height
0.398 Inch
Width
1.445 in

Certifications and Compliance

Country of Origin
Switzerland
Approvals
  • DEKRA Certification B.V., ENEC 05, 71-123784, EN 60998
  • Lloyds Register, LR, LR22207029TA, EN 60998
  • UL International Germany GmbH, UL_Listed_64KA, E201573, UL 467
  • American Bureau of Shipping, ABS, 18-HG1755093-PDA, EN 60998
  • DEKRA Certification B.V., CB, NL-81003, IEC 60998
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000015T, EN 60998
  • UL International Germany GmbH, UL, E69654, UL 486C
Features
  • Ease of use pull the lever up, insert a conductor and push the lever back down
  • Available as 2-, 3- and 5-wire connectors
  • Easily terminate conductors from 0.5 to 6 mm²
  • Connection of all conductor types
  • Time savings for installers and device manufacturers
  • Quickly install devices with higher power consumption
  • Safely install long cable runs with larger conductor cross sections
  • Mounting carrier for installation conforms to standards
  • Custom carriers are possible
Accessory Products
  • 207-1432
  • 221-510
  • 221-510/000-006
  • 221-510/000-053
  • 221-941
  • 221-941/000-006
  • 221-942
  • 221-942/000-006
