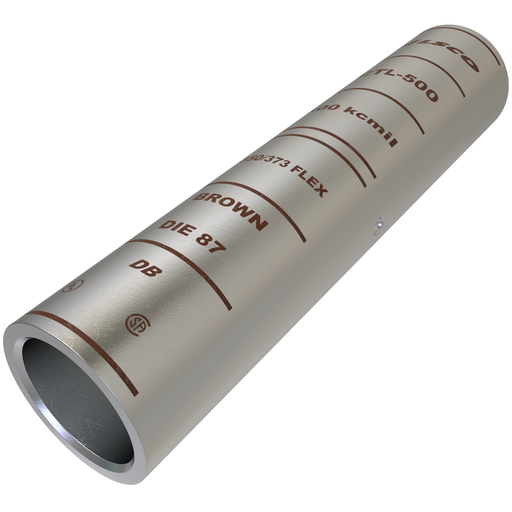

Ilsco CTL-500 SureCrimp® Copper Compression Sleeve, Conductor Size 500, Long Barrel, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CTL-500 | Codale Part # 4242714
$35.88/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Copper Compression Sleeve, Long Barrel, Compression connection, Copper material, Tin plated connector,Long barrel, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 500 kcmil, 1 conductors, no sight window, flex conductor range 350 G,H,I,K,M 373.7 DLO, rated for 35 kV, die color code Brown, primary color Silver, die index I-87,

Technical Information

Applications
For Splicer/Reducer
Color Coding
Brown
Conductor Size
500 kcmil
Conductor Type
Copper
Connector Type
Parallel
Material
Copper
Size
L:4.625;W:1.062;H:1.062 IN
Standard
UL Specifications: UL 486A-B,UL File Number: E6207,NEBS Rating: LEVEL 3,CSA File Number: LR-29601
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
UL Model
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669148985
Color
Silver
Finish
Tin Plated
Product UPC
78366914898

Dimensions

Inside Diameter
0.828 in
Length
4.625 in
Outside Diameter
1.062 in
