PAN NKFPX2ERLLSM004 NK 2F OM3 1.6MM

Manufacturer: PANDUIT | Catalog # NKFPX2ERLLSM004 | Codale Part # 4242744

$95.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet

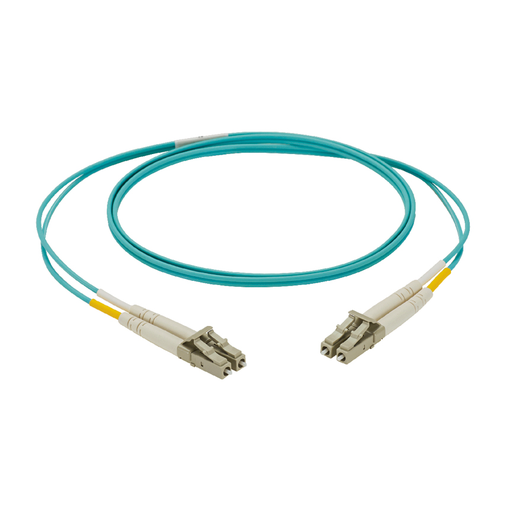

NetKey 2-fiber OM3 LC duplex to LC duplex patch cord, riser (OFNR) rated with 1.6mm jacket.

Technical Information

Applications
For Interconnect and Cross-Connect In Entrance Facilities, Telecommunications Rooms, Data Centers and At The Desk, Support Network to Interconnect Pre-Terminated Cassettes in Main Distribution, Horizontal Distribution and Equipment Distribution Areas
Body Type
Duplex
Boot Color
Aqua
Cable Type
Duplex
Connector Type
LC Duplex
Fiber Cable Size
50/125 m
Fiber Type
OM3
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Number of Fibers
2
Number of Poles
2 Pole
Number of Screws
2
Plug Type
LC Connector - Keyed H (Aqua)
Standard
Class E Requirements For Channel,Component Level Performance Per TIA,EIA-568-B.2-1 And ISO,Extreme 6+ System Components Meet Or Exceed The Category 6,IEC 11801-B. Components Certified Per UL And CUL Listed, NOM And ACA Requirements
Temperature Rating
-10 to 60 degrees C
Type
OM3 GbE, 2-Fiber, Flame-Retardant
Wire Size
1.6 mm

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983914173
Cable Color
Aqua
Color
Aqua
Environment
Indoor
Product UPC
07498391417
UNSPSC
43223326
Weight
0.1400 lb

Dimensions

Cable Length
4 m
Length
4 m
Outer Diameter
0.06 in
Outside Diameter
NA mm
Overall Length
13.12 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China
Standards and Certifications
  • Standards Met: TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Compliant
