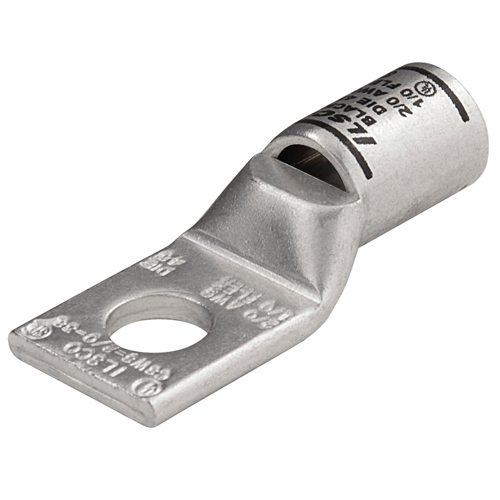

Product image for Ilsco CSWS-2/0-38 SureCrimp® Copper Compression Lug, Conductor Size 2/0, 1 Hole, 3/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco CSWS-2/0-38 SureCrimp® Copper Compression Lug, Conductor Size 2/0, 1 Hole, 3/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CSWS-2/0-38 | Codale Part # 4242879
$9.86/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 2/0 Str, sight window, Square tang end, flex conductor range 1/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Black, primary color Silver, die index I-45,

Technical Information

Applications
Terminating Connector
Barrel Length
0.85 in
Barrel Type
Short, Straight
Bolt Size
3/8 IN
Color Coding
Black
Conductor Material
Copper
Conductor Size
4-2/0 AWG
Conductor Type
Flex,Stranded
Connection Type
Compression
Direct Burial?
Yes
Material
Copper
Mounting Hole Size
0.406 in
Mounting Type
13/32 in Hole
Number of Holes
1 Hole
Size
L:2.121;W:0.811;H:0.597 IN
Standard
CSA,E2186,UL
Strip Length
20.624 mm
Stud Size
3/8 in
Temperature Rating
90 degrees C
Type
CSWS:1 HOLE SHORT W/SIGHT
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669637052
Color
Silver
Finish
Tin Plated
Product UPC
78366963705
Weight
0.060 lb

Dimensions

Height
0.597 Inch
Inside Diameter
0.437 in
Length
2.121 Inch
Outside Diameter
0.562 in
Overall Length
2.021 in
Width
0.811 in
