HDFLEXCASS,OM3,1MPO-6DPLX,OPT,BU

Manufacturer: Panduit | Catalog # FHCXO-12-10AS | Codale Part # 4244108
$966.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

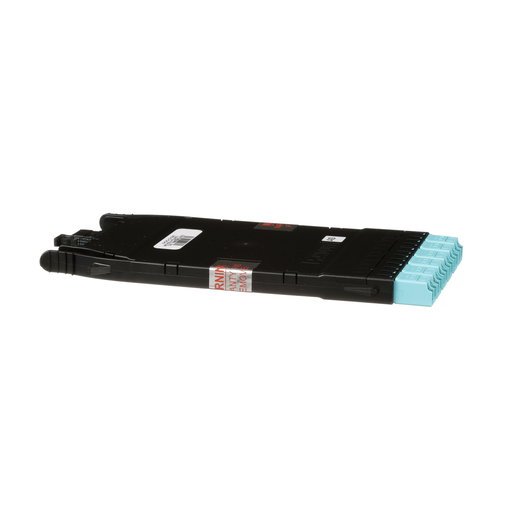

The HD Flex™ Cassette is OM3 MPO to LC and supports 12 fibers total. It is standard IL and uses standard Method A polarity. The cassette has a black cover with a black MPO connector and 6 aqua duplex LC adapters with integral shutters to prevent contamination .

Technical Information

Applications
For use to Allows System Designers to Tailor Configuration, Reach and Breakout Construction to Application Requirements to Minimize Waste, Optimize Cable Management, Speed Deployment and Improve Flexibility, Manageability For Lower Installation Costs
Connection Type
LC Duplex, MPO Male
Connector Type
MPO Male x LC Duplex
Fiber Count
12
Fiber Type
OM3 50/125 m
Material
Zirconia Ceramic
Number of Fibers
12
Number of Ports
6
Standard
Class E Requirements For Channel,Component Level Performance Per TIA,EIA-568-B.2-1 And ISO,Extreme 6+ System Components Meet Or Exceed The Category 6,IEC 11801-B. Components Certified Per UL And CUL Listed, NOM And ACA Requirements
Temperature Rating
0 - 70 degrees C
Type
Cassette

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
HD Flex™

General Product Info

12-Digit UPC
074983133970
Color
Aqua
Product UPC
07498313397
Weight
0.4100 lb

Dimensions

Depth
7.3 Inch
Height
0.46 Inch
Width
7.5 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Costa Rica,Romania
