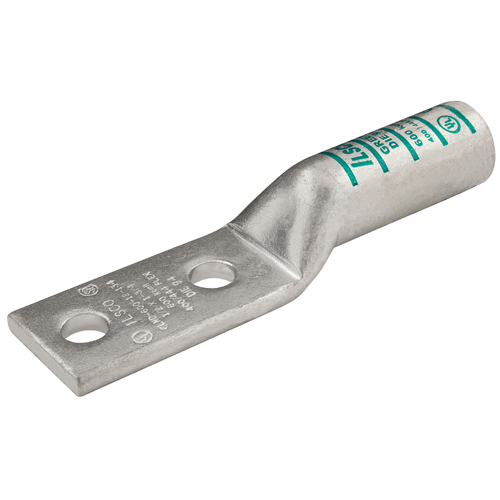

Image thumbnail 2
Email

Ilsco CLND-600-12-134 SureCrimp® Copper Compression Lug, Conductor Size 600, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CLND-600-12-134 | Codale Part # 4244451
$47.34/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 600 kcmil, no sight window, Square tang end, flex conductor range 400 G,H,I,K,M 444.4 DLO, rated for 35 kV, die color code Green, primary color Silver, die index I-94,

Technical Information

Applications
For Terminating Connector
Barrel Diameter
0.92 in
Barrel Length
2.687 in
Barrel Type
Long
Bolt Size
1/2 IN
Color Coding
Green
Conductor Material
Copper
Conductor Size
600-250 kcmil
Conductor Type
Flex,Stranded
Connection Type
Compression
Die Code
I-94
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.562 in
Number of Holes
2 Hole
Size
L:6.496;W:1.712;H:1.232 IN
Standard
NEBS Rating: LEVEL 3,UL Specifications: UL 486A-B,UL File Number: E6207,CSA File Number: LR-29601
Strip Length
69.824 mm
Stud Size
1/2 in
Temperature Rating
90 degrees C
Type
Long Barrel, CLND, Straight
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669647143
Color
Green,Silver
Finish
Electro Tin Plated
Product UPC
78366964714
Weight
0.874 lb

Dimensions

Height
1.232 Inch
Inside Diameter
0.92 in
Length
6.496 Inch
Outside Diameter
1.187 in
Width
1.712 in
