Klein ET910 USB Digital Meter and Tester, USB-A (Type A)

Manufacturer: Klein Tools | Catalog # ET910 | Codale Part # 4244638
$43.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet

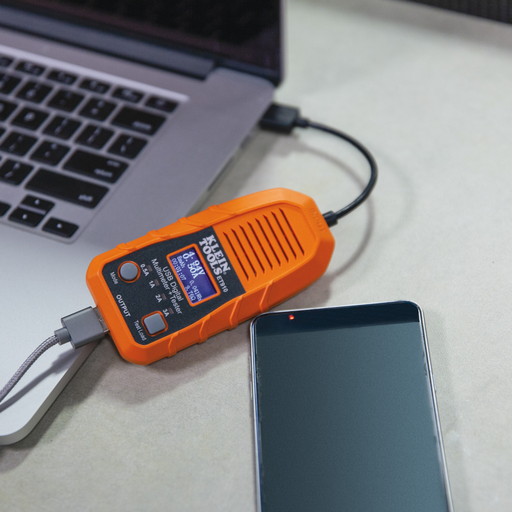

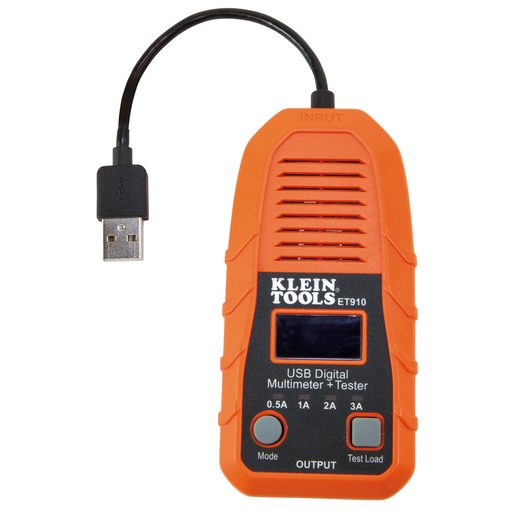

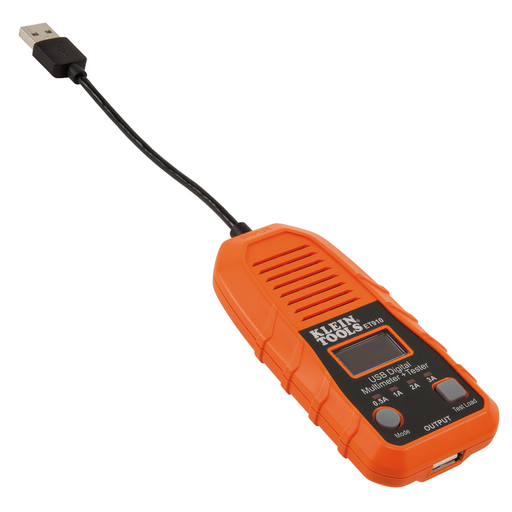

The Klein Tools ET910 is a USB digital meter and tester combination for most common USB-A ports, including Qualcomm Quick Charge® ports. It accurately and reliably measures and displays the USB port voltage, current, capacity, energy, and resistance simultaneously. It can also test the maximum current delivery capability of the USB port with built-in fixed loads so user need not connect to an external load. It will function with any USB-A port that has the ability to deliver power. It requires NO batteries as it draws power from the power source to function.

Technical Information

Applications
USB Port Voltage, Current, Capacity, Energy, Resistance (Calculated), Max Current
Current
3 Amp
Display Type
LCD
Material
Polymer
Resistance
400 ohms Maximum
Type
Type A
Voltage
20 Volt

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644691393
Environmental Conditions
IP20
Product UPC
09264469139
Weight
0.175 lb

Dimensions

Depth
11.21 Inch
Height
0.98 Inch
Length
4.31 Inch
Overall Length
4.31 in
Width
2.15 in

Certifications and Compliance

Country of Origin
China

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Warnings
  • To ensure safe operation and service of this meter, follow all instructions. Failure to observe warnings can result in severe injury or death.
  • This meter will NOT display current below 50 milliamperes, even if it is allowing this to pass through. NOTE: The display will show zero current.
  • Do NOT use with ports that operate outside of the rated voltage and current. NEVER use on a circuit with voltage or current that exceeds the maximums specified for this device.
  • Do NOT use during electrical storms or in wet weather. Do NOT use if meter appears damaged. Use caution when working with voltages above 25V RMS or 24V DC. Such voltages pose a shock hazard.
Features
  • 3 to 20V DC; Current: 0.05 to 3A (monitoring mode)
  • Built-in test loads of 0.5A, 1A, 2A, and 3A; no external test load required
  • Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and resistance (calculated)
  • Tests most common standard USB-A ports, including Qualcomm Quick Charge® ports
  • Store and recall up to 10 readings
  • Voltage and current overload detection
  • Hi-resolution LCD for clear visibility in environments with low ambient lighting
  • Durable cable to allow easy access to hard-to-reach ports
  • Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
  • Built to withstand a 6.6-Foot (2m) drop
  • No batteries needed; powered by the USB port being tested
  • Current Test Loads: 0.5A, 1A, 2A, 3A
