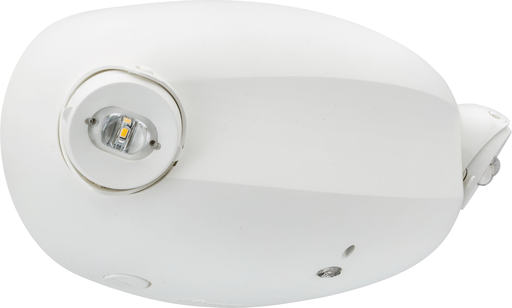

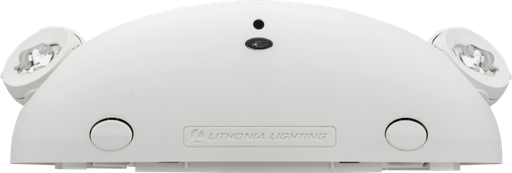

LITH ELM2L UVOLT SDRT M12 ELM2L, 12

Manufacturer: Lithonia Lighting | Catalog # ELM2LUVOLTSDRTM12 | Codale Part # 4245612
$213.86/ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
ELM2L, 120-347VAC, Self-Diagnostic & Remote Test

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Residential,Retail,Sports And Recreation
Battery Life
90 min
Color Rendering Index
70 CRI
Color Temperature
5000 K
Correlated Color Temp
5000 K
Lamp Type
LED
Lamp Wattage
1.34
Lens Color
Clear
Lens Material
Acrylic
Lumens
220 Lumen
Material
Thermoplastic
Mounting Type
Surface
Number of Lamps
2
Power Source
Hardwired
Size
9.72x4.68x4.68 IN
Standard
C-UL-US,NFPA 101,NFPA 70,NOM,ULCA Title 20
Type
Emergency Lighting Unit
Voltage
120 Volt
Wattage
1.34 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
191848150641
Color
White
Construction
New Construction,Remodel
Environmental Conditions
Indoor,Outdoor
Finish
Textured
Fixture Type
Emergency Lighting Unit
Product Type
Emergency Lighting Unit
Product UPC
19184815064
Weight
2 lb

Dimensions

Height
3-1/2 Inch
Length
10 Inch
Warranty Length
5 yr
Width
5 in

Certifications and Compliance

Country of Origin
Mexico
Features

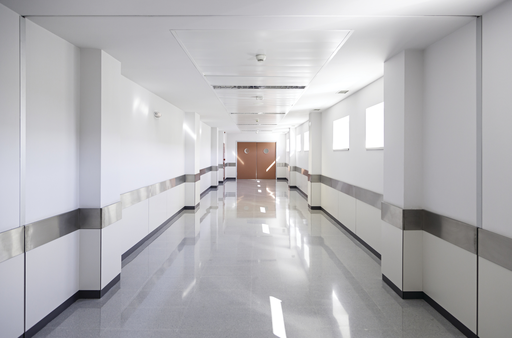

  • The Lithonia Lighting® Quantum® ELM2L Emergency Light is suitable for emergency lighting for applications such as stairways and hallways. Its high performance LED lamp heads makes the ELM2L ideal for safely illuminating the path of egress for applications requiring attractive LED unit equipment with quick installation and unparalleled performance for lower mounting heights. It can be wall or ceiling mounted and will provide 90 minutes of emergency power in the case of power loss.
  • UNIQUE FEATURE: Self-Diagnostic Testing, five minutes every 30 days and 90 minutes annually to make required tests a breeze
  • ENERGY SAVINGS: Current-limiting charger maximizes battery life and minimizes energy consumption and provides low operating costs
  • RATINGS/LISTINGS: UL Damp Location Listed Standard, meets or exceeds all application requirements for UL 924, NFPA 101 current life safety code, NFPA 70 (NEC), Title20, FCC Title 47, Part 15, Subpart B and OSHA
  • INSTALLATION: Wall mount or ceiling mount
  • DESIGN FEATURE BENEFIT: Provides up to 35' spacing between units
  • BATTERY: Sealed, maintenance-free nickel-cadmium
  • BUY WITH CONFIDENCE: 5-year limited warranty
