Product image for Lithonia ELM2L-M12 LED Emergency Lighting Unit, Aimable Optics, NiCad Battery, 120/277V, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

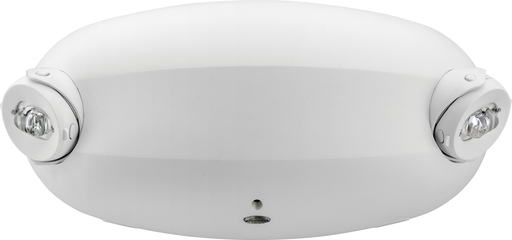

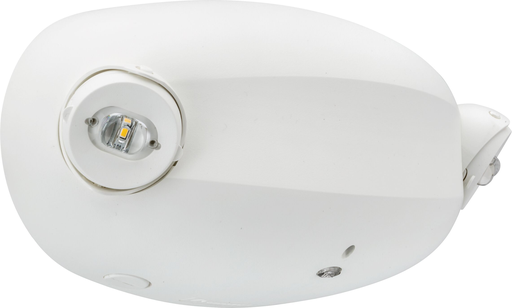

Lithonia ELM2L-M12 LED Emergency Lighting Unit, Aimable Optics, NiCad Battery, 120/277V, White

Manufacturer: Lithonia Lighting | Catalog # ELM2LM12 | Codale Part # 4246625
$95.14/ea
ea
Log in or register to view your price, purchase history, and more!
102 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
ELM2L Contemporary Commercial LED Emergency Light, SKU - 264E6T

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Residential,Retail,Sports And Recreation
Color Rendering Index
70
Color Temperature
5000 K
Correlated Color Temp
5,000 K
Lamp Type
LED
Lens Color
Clear
Lens Material
Acrylic
Lumens
220 Lumen
Material
Thermoplastic
Mounting Type
Surface
Number of Lamps
2
Power Source
Hardwired
Type
Emergency Lighting Unit
Voltage
120 Volt
Wattage
0.36 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
191848091920
Color
White
Construction
New Construction,Remodel
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Textured
Fixture Type
Emergency Lighting Unit
Product UPC
19184809192
Weight
1.31 lb

Dimensions

Height
4.68 Inch
Length
9.72 Inch
Width
3.1 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features

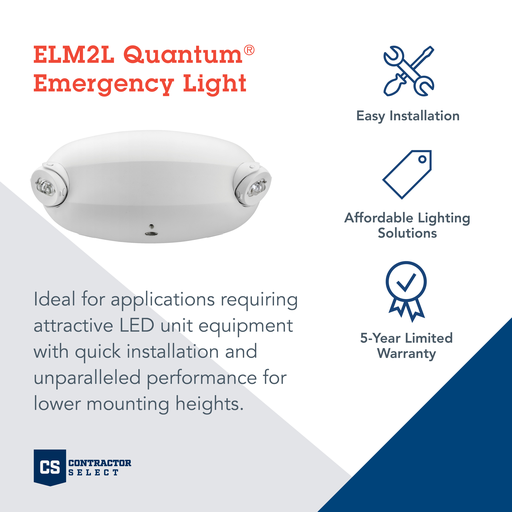

  • APPLICATIONS: Ideal for larger commercial indoor applications requiring attractive LED unit equipment for mounting heights up to 12'
  • INSTALLATION: Wall mount and ceiling mount standard
  • DIMMING: Not applicable
  • RATINGS: UL damp location listed standard at 50-104 degrees F (10-40 C), meets or exceeds all applicable requirements for Life Safety Code and state specific requirements
  • VOLTAGE: Functions between 120 or 277 volts (60 Hz) with input wattage of 0.36 watts
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years using two 1.2-Watt LED lamps for emergency light
  • DESIGN: The housing is a standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources

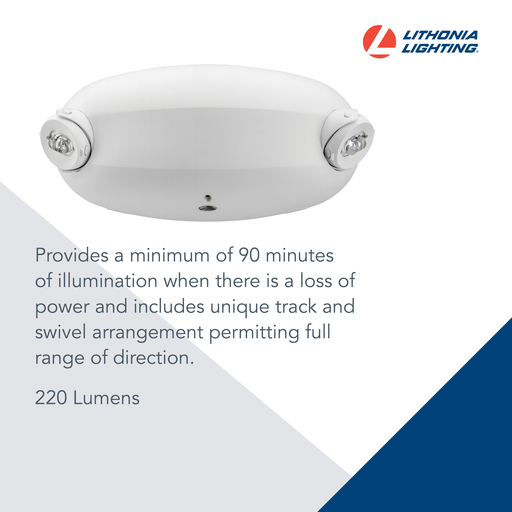

  • BATTERY: Emergency light provided with test switch, status indicator and rechargeable battery with maintenance-free 3.6V nickel-cadmium battery provides 90 minutes of emergency power
  • WARRANTY: Buy with confidence with a 5-year limited warranty
  • DIMENSIONS: Length: 9.72 in. x Height 4.68 in.
Applications
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Residential
  • Retail
  • Sports and Recreation
Standards
  • C-UL-US
  • NFPA 101
  • NFPA 70
  • NOM
  • ULCA Title 20
