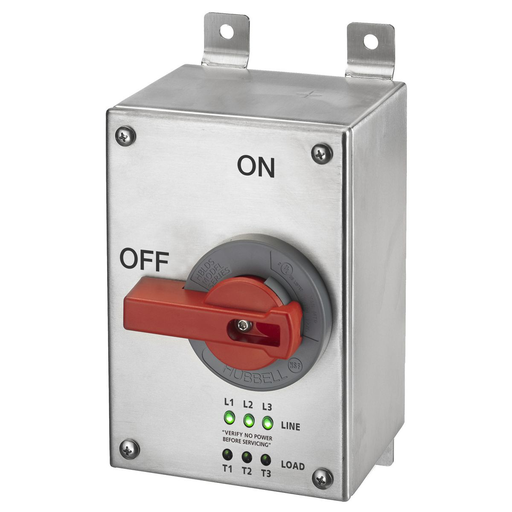

Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBLDS3SSPDISCONNECT, UN-F, 30A, 4X, SS, LED LIGHTS

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLDS3SSP | Codale Part # 4246656
$1,209.18/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Disconnect Switches, Unfused, 30A 600VAC, 3-Pole, NEMA 4X, Stainless Steel, With LED Lights

Technical Information

Amperage
30 Amp
Applications
For Motor Control
Connection Type
Pressure Screw
Current
30 Amp
Enclosure
NEMA Type 4X
Load Rating
18000 W
Mounting Type
Screw
Number of Poles
3 Pole
Operating Cycles
10000
Operating Temperature
Minimum Continuous -40 Deg C without Impact
Reset Type
No Reset/Overload
Size
Standard Sized
Style
Heavy Duty
Tc Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C Minimum Continuous without Impact
Type
Standard, Unfused
Voltage
600 VAC
Wattage
18000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Motor Starting/Disconnect Switches

General Product Info

12-Digit UPC
783585365152
Environmental Conditions
Indoor or Outdoor
Product Series
Non-Fused
Product UPC
78358536515
Shape
Square Top
Weight
5.7000 lb

Dimensions

Height
8.3 Inch
Length
10.2 Inch
Width
9.7 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Six highly visible integral phase identification LEDs for use on 3 Phase Y system
  • LEDs provide secondary means of visual confirmation of make/break on all phases
  • Cover cannot be removed with switch in the ON position
  • Verification of opening of load side contacts
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
