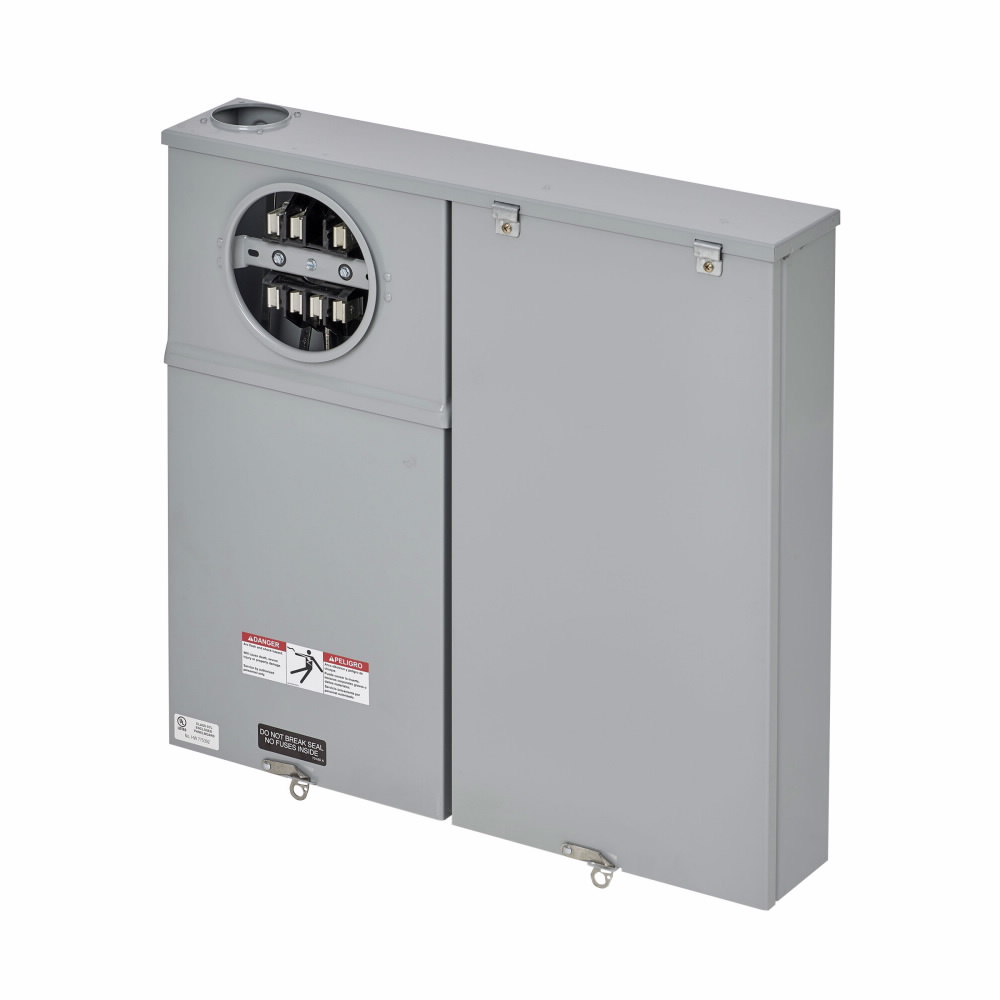

Product image for B-Line U217-MTBL Meter Breaker, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, #6-250 MCM, Main Fuse, Steel, Surface mount, 7 jaws, 1 position, 3?/4W, Overhead feed
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

B-Line U217-MTBL Meter Breaker, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, #6-250 MCM, Main Fuse, Steel, Surface mount, 7 jaws, 1 position, 3?/4W, Overhead feed

Manufacturer: Eaton B-Line | Catalog # U217MTBL | Codale Part # 4247519
$3,352.67/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Eaton B-Line series meter breakers, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, #6-250 MCM, Main Fuse, Steel, Surface mount, 7 jaws, 1 position, 3?/4W, Overhead feed

Technical Information

Amperage
100 Amp
Applications
METER MAIN LOAD CENTER,TEST BLOCK BYPASS,Overhead/Underground Feed, Watt hour Meters
Cable Entry
Knockouts
Enclosure
NEMA 3R
Interrupt Rating
10 kAIC
Material
Steel
Mounting Type
Surface
Number of Phases
3 Phase
Number of Wires
4 Wire
Size
25 In Width X 4-5/8 In Depth X 24 In Height
Type
Ring,Self-Contained,Test Block Bypass
Voltage
120/208 Volt

Manufacturer Information

Brand
B-Line
Sub Brand
Metering

General Product Info

12-Digit UPC
782051701340
Product UPC
78205170134
Weight
51 lb

Dimensions

Height
26 Inch
Length
4-5/8 Inch
