HWDK HBL5261IWR WR RCPT, SING, SB,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5261IWR | Codale Part # 4249654
$46.18/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Weather-Resistant Single, Industrial Grade, 15A 125V, 2- Pole 3-Wire Grounding, 5-15R, Ivory, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty
Base Material
PBT
Conductor Size
14-10 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
0.5 hp
Material
Thermoplastic
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA 22.2,Fed. Spec. W-C-598,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
Tc Connection
Back and Side Wired
Type
Single
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585320625
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Extra Heavy Duty
Product UPC
78358532062
Weight
0.2 lb

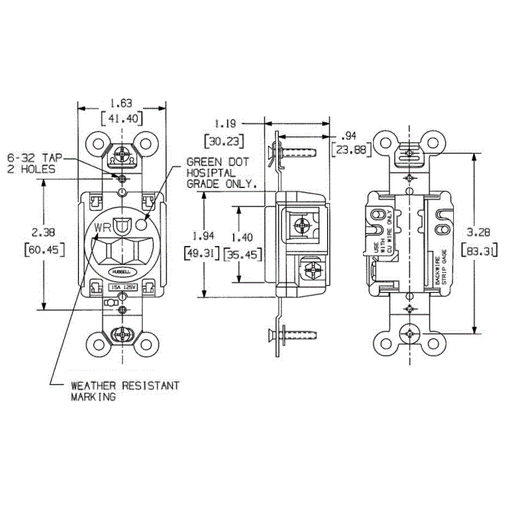

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
USA
Features
  • Weather-resistance complies with national electrical code requirements
  • Back wired ground terminal allows faster, easier installation
  • Finder Groove Face
  • Weather Resistant
