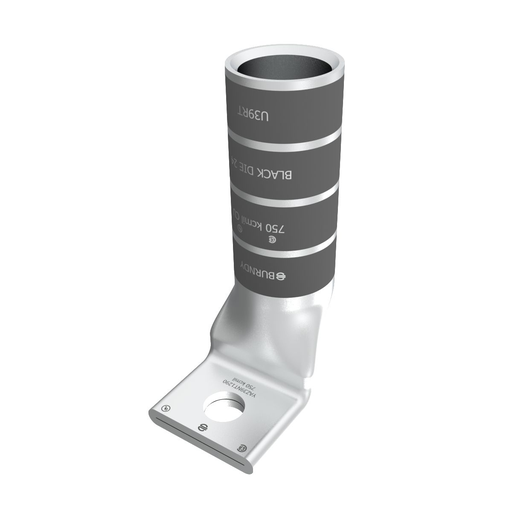

BURNDY YAZ39NT1290 CULUG-750KCM-LONG W/PORT

Manufacturer: Hubbell-Burndy | Catalog # YAZ39NT1290 | Codale Part # 4249966
$82.30/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
750 kcmil CU, One Hole, 1/2 Stud Size, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Black Color Code, 24 Die Index.

Technical Information

Color Coding
Black
Conductor Material
COPPER
Conductor Size
750 kcmil
Connection Type
Long Barrel
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated

Manufacturer Information

Brand
Burndy

General Product Info

12-Digit UPC
781810240724
Finish
Tin Plated
Product UPC
78181024072

Dimensions

Height
4.27 Inch
Hole Size
0.53 in
Length
1.92 Inch
Overall Length
49 mm

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Features
  • Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with stamping and barrel color coding
