Hoffman T430616G150 T-Series Mid-Size Outdoor Model with Heat, T43, 2" x 2" x 2", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # T430616G150 | Codale Part # 4250092
$16,372.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet

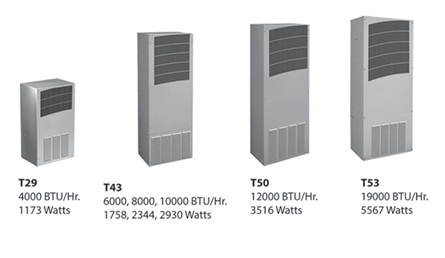

T-Series Mid-Size Air Conditioners keep equipment cool at a range of heat loads. Their discreet design helps them to blend into blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance.

Technical Information

Applications
Controls and Drives; Power Distribution
BTU Hour
6680 BTU
Color Coding
RAL 7035
Material
Steel
Max Current
8.6 A
Max Temperature
131 degrees F
Min Temperature
-40 degrees F
Type
Air Conditioners
Voltage
120 Volt
Wattage
1958 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
T-Series

General Product Info

12-Digit UPC
783510222529
Color
Gray
Finish
Powder Coated
Product UPC
AIRCONDT43-0616-G1
Weight
125 lb

Dimensions

Depth
10.9 Inch
Height
43 Inch
Length
20-1/4 Inch
Thickness
1.21 mm
Width
15.75 in
Features
  • Stock models equipped with head pressure control for low-ambient operation, compressor heater, coated condenser coil, malfunction switch, thermostat and heater package
  • R134A or R-407C earth-friendly refrigerant
  • Models for 115, 230 and 460 VAC power input
  • UL Listed to save customers time and money with agency approvals (some models UL recognized)
  • Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
  • Exterior and fully recessed mounting options on many models
  • Compact footprint to minimize real estate and maximize capacity
  • Reliable mechanical thermostat on enclosure side of the unit
  • Dual condenser-side air movers for performance redundancy
  • Painted galvanized sheet-metal cover for rugged factory and outdoor environments
  • Easy-mount flanges for simple installation
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • Mounting hardware, gaskets and user manual furnished with the unit
  • Every unit functionally tested before shipping
  • Standard Outdoor Air Conditioner models also include:
  • Telcordia GR-487 capable
  • Thermostat
  • Corrosion-resistant components
  • Malfunction switch
  • Compressor heater
  • Head pressure control
  • Enclosure heater
Notes
  • ProAir Harsh Environment air conditioner may be more appropriate. Refer to ProAir Harsh Environment air conditioner catalog section. Consult the Factory for availability and catalog number.
  • Reference the Spec Sheet in the Downloads tab for complete product specifications, performance curves and detailed drawings.
