HWDK HBL2800 LKG RCPT, 30A 240/415

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2800 | Codale Part # 4250626
$231.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

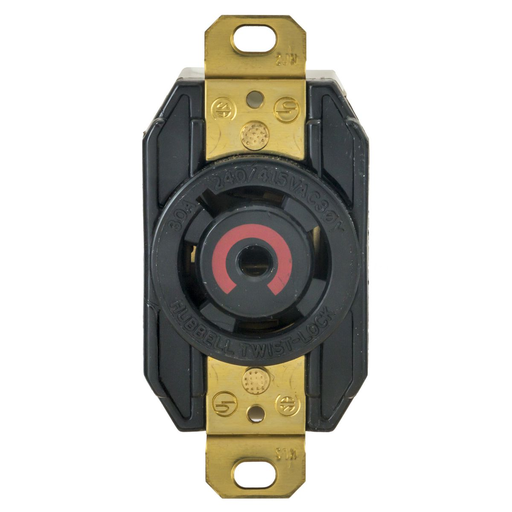

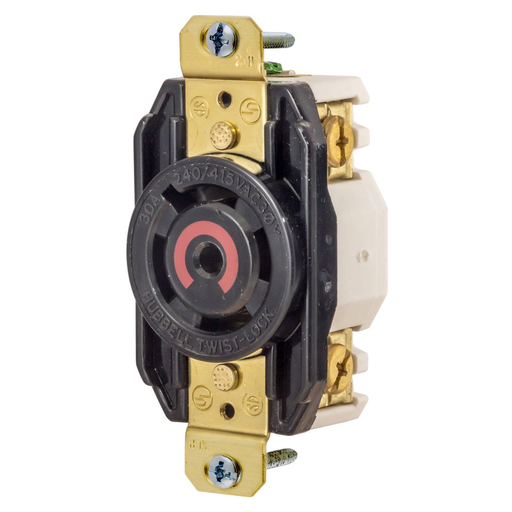

Locking Devices, Twist-Lock®,Single Flush Receptacle, 30A, 4 Pole, 5 Wire Grounding, 240/415 VAC, 3 Phase Y, NEMA L26-30R, Black Nylon

Technical Information

Amperage
30 Amp
Applications
For General and Industrial ID, Indoor/Outdoor Use
Conductor Size
16-8 AWG
Material
Thermoplastic
Number of Poles
4 Pole
Number of Wires
5 Wire
Size
Standard Product
Standard
CSA,E2186,UL
Tc Connection
Terminal Screws
Voltage
240/415 Volt
Wattage
12450 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock®, Variload®

General Product Info

12-Digit UPC
783585580357
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358558035
Weight
0.3000 lb

Dimensions

Height
1.23 Inch
Length
2.38 Inch
Width
1.900 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • High-impact, abuse-resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion
