Hubbell HBL14W33 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20P Yellow Straight Blade Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL14W33 | Codale Part # 4251546
$109.58/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20P, Yellow, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Conductor Size
14-10 AWG
Cord Type
All Portable
Current
20 Amp
Grounding
Grounding
Horsepower
0.50 hp
Material
Composite
Mounting Type
Cord
NEMA
5-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No. 42 File 280,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
Tc Connection
Terminal Screws
Type
Elasto-Grip
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585013329
Color
Yellow
Environmental Conditions
Weather-Resistant, Watertight
Product Series
Elastogrip
Product UPC
78358501332
Weight
0.3 lb

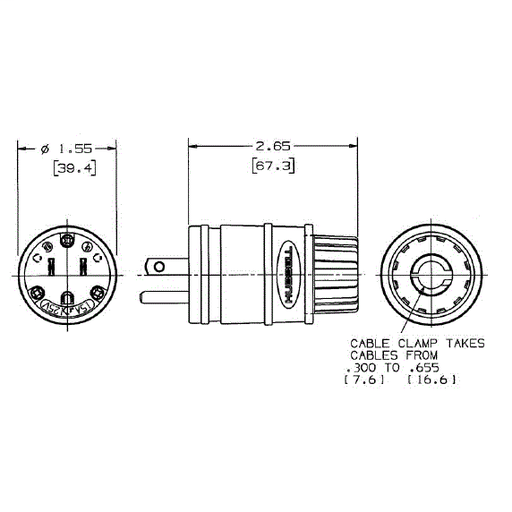

Dimensions

Height
2.67 Inch
Length
2.67 Inch
Width
1.55 in

Certifications and Compliance

Country of Origin
USA
Features
  • Thermoplastic elastomer housing
  • Integral weatherproofing shroud seals connection between plug and connector
  • Nylon compression nut keeps water and dust from getting into the body around the cord
