Klein CL360 Electrical Tester, Open Jaw Fork Meter, AC Auto-Ranging, 200 Amp

Manufacturer: Klein Tools | Catalog # CL360 | Codale Part # 4251931
$79.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet MDM Safety Data Sheet
The CL360 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester. It includes a carrying case, test leads and 2 x AAA batteries.

Technical Information

Applications
Measures AC Current, AC/DC Voltage, Continuity, Resistance
Battery Type
(2) 1.5 V AAA
Current
200 Amp
Display Type
LCD
Material
Electrical Components,Plastic
Number of Rows
1
Type
Open Jaw Fork
Voltage
1000 Volt

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644691140
Environmental Conditions
9.9 ft Drop Test
Product UPC
09264469114
Weight
0.400 lb

Dimensions

Depth
8.39 Inch
Height
1.38 Inch
Length
8.39 Inch
Overall Length
8.39 in
Width
2.12 in

Certifications and Compliance

Country of Origin
China

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Features
  • Open Fork Meter with automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Tester measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads
  • Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (1.5 cm)
  • Non-contact voltage tester integrated into the jaw

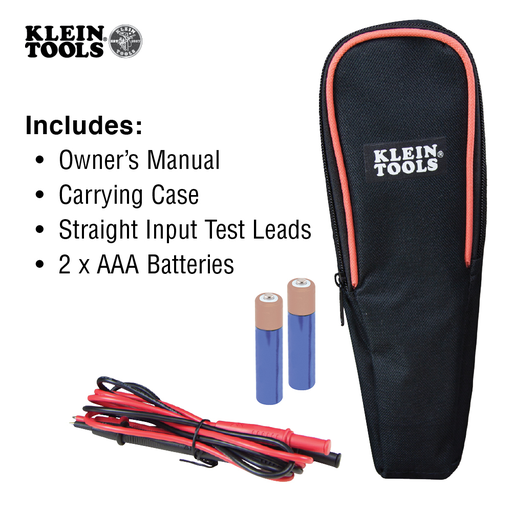

  • Includes a carrying case, test leads and 2 x AAA batteries
  • Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation
  • Backlit display for clear readings
  • Powers off automatically after 15 minutes of non-use to conserve battery life
  • Rugged Klein \"TOUGH METER\" is built to withstand a 9.9-Foot (3m) drop
  • Low battery indicator and easily accessible battery compartment
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
  • Low Battery Indicator, Built-in Test Lead Holders, Backlit Display
  • Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (14.7mm)
  • Rugged Klein TOUGH METER is built to withstand a 9.9-Foot (3m) drop
Warnings
  • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
  • Before each use, verify meter operation by measuring a known voltage or current.
  • Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
  • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
Replaced By Products
  • 69410
