Hubbell CR5252IGBKDUP Receptacle, IG, CONST GRD, 15A 125V, BK

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CR5252IGBK | Codale Part # 4251987
$23.66/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Hubbell-Pro Heavy Duty, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black, Single Pack, Isolated Ground.

Technical Information

Amperage
15 Amp
Applications
Commercial Grade
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial
Grounding
Isolated
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Traditional
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585387147
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hubbell-PRO
Product UPC
78358538714
Weight
0.22 lb

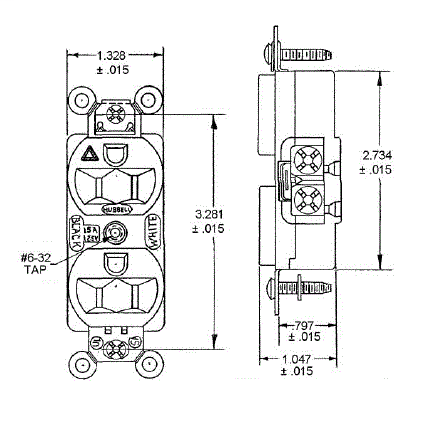

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Triangle marking on face indicates isolated ground
  • Slender/compact design
  • Finder Groove Face
  • Isolated Ground
