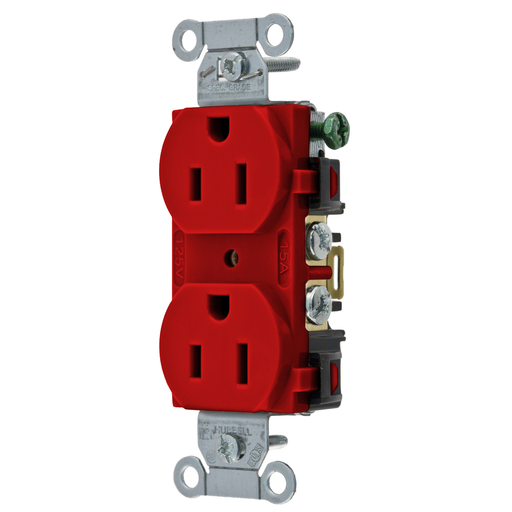

Hubbell BR15R Receptacle, DUP SB, COM GRD, 15A 125V, B/S, R

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # BR15R | Codale Part # 4253633
$2.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Duplex Receptacle, Commercial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Back and Side Wired, Red.

Technical Information

Amperage
15 Amp
Applications
Commercial Specification Grade
Base Material
Nylon,Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Enclosure Material
Stainless Steel
Face Material
Nylon,Nylon
Flamability Class
UL 94 V-2
Grade
Commercial
Grounding
Self
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Plated Steel
Size
Standard
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Smooth Face
Tc Connection
Back and Side Wired
Type
Traditional
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585197661
Color
Red
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Commercial Specification Grade
Product UPC
78358519766
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.3 Inch
Width
1.34 in

Certifications and Compliance

Country of Origin
China
Features
  • Easy access split circuit tab
  • Nylon face and base
  • Wrap-around galvanized steel strap
  • Triple wipe contacts
  • Self Grounding
