Hubbell HBL69W81 WATERTIGHT RECEP, 30A 120/208V, L21-30

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL69W81 | Codale Part # 4255703
$124.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase WYE 120/208V AC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L21-30R, Yellow

Technical Information

Amperage
30 Amp
Applications
For Industrial, Commercial
Body Material
PBT
Conductor Size
18-8 AWG
Contact Material
Brass
Current
30 Amp
Dielectric Strength
2500 VAC
Material
Composite/Elastomeric
Mounting Type
Screw
NEMA
L21-30R
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass

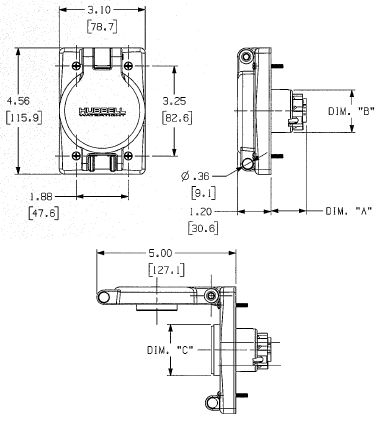

Size
4.56 in x 3.10 in x 2.92 in
Standard
ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Type
Receptacle
Voltage
120/208 Volt
Wattage
6240 Watt
Wire Count
5
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585433318
Color
Yellow
Environmental Conditions
Watertight
Finish
Plated
Product UPC
78358543331
Weight
0.3000 lb

Dimensions

Height
2.92 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
