Burndy YA392NNT 750 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Narrow Tongue Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Black Color Code, 24 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YA392NNT | Codale Part # 4256138
$149.11/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Hylug, 750 kcmil , 6.87 in L, 1.91 in W.

Technical Information

Applications
telecommunication, petrochemical, data center
Color Coding
Black
Conductor Material
COPPER
Conductor Size
750 kcmil
Connection Type
Long Barrel
Material
Copper
Max Voltage
35000 V
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin
Type
YA-N-NT
Voltage
35,000 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810252512
Color
Black
Finish
Tin Plated
Product UPC
78181025251
Weight
1.0180 lb

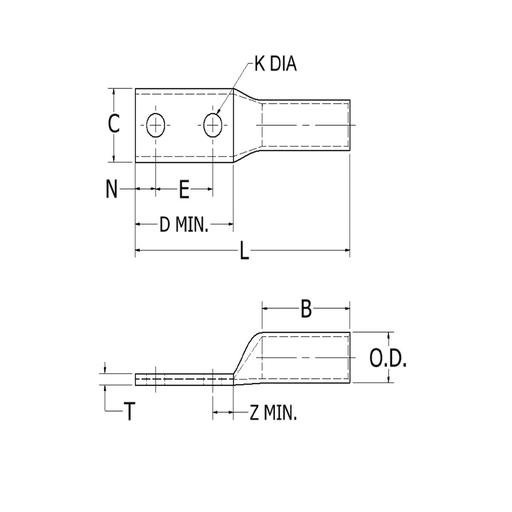

Dimensions

Height
1.3 Inch
Hole Size
0.56 in
Length
6.87 Inch
Overall Length
174 mm
Width
1.63 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
  • Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with stamping and barrel color coding
  • 2-Hole design prevents rotation
