Panduit CC6X88BL Mini-Com® Cat 6A UTP R

Manufacturer: PANDUIT | Catalog # CC6X88BL | Codale Part # 4257735
$68.55/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

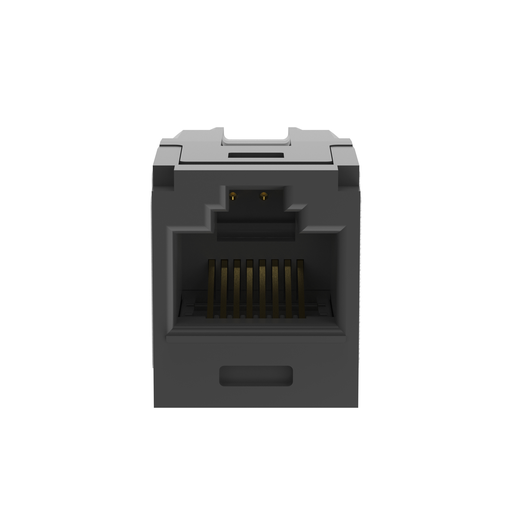

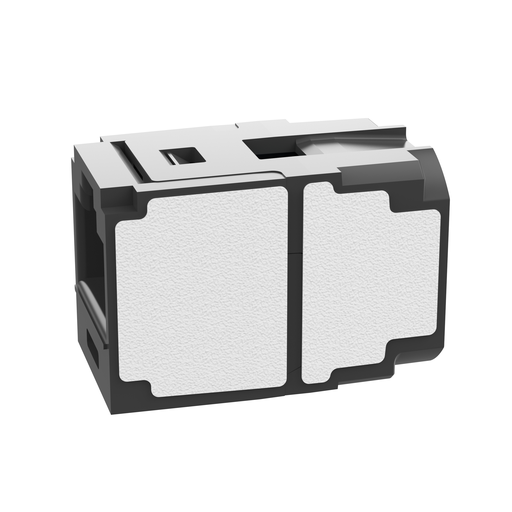

The Mini-Com® Cat 6A UTP RJ45 Coupler Module is designed and 100% factory tested to allow for up to one coupler to be used and meet channel performance requirements. Contacts are plated with 50 microinches of gold for superior performance. The coupler module is compatible with Mini-Com Modular Patch Panels and Faceplates. The coupler is black.

Technical Information

Applications
For Digital Video and Broadband/Baseband Analog Video, Voice over Internet Protocol (VoIP)
Cable Entry
T568A/T568B
Cable Type
Category 6A
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6A
Temperature Rating
-14 to 149 degrees F
Type
RJ45, Universal, 1-Port, 8-Wire, Unshielded

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com, TX6A™

General Product Info

12-Digit UPC
074983525447
Color
Black
Product UPC
07498352544
Weight
0.0300 lb

Dimensions

Depth
1.09 Inch
Height
0.71 Inch
Overall Length
1.09 in
Width
0.62 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: Exceeds Channel Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category with one coupler per channel, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
