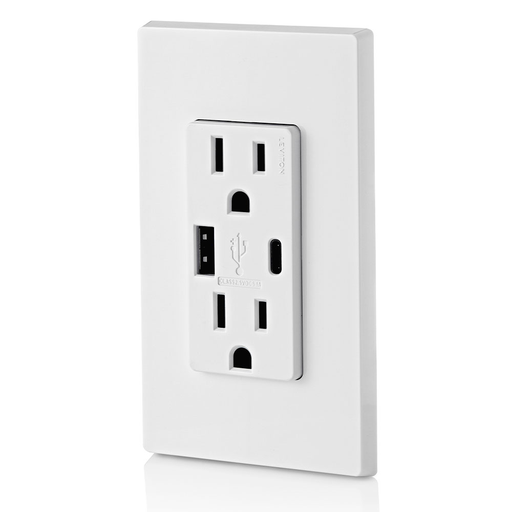

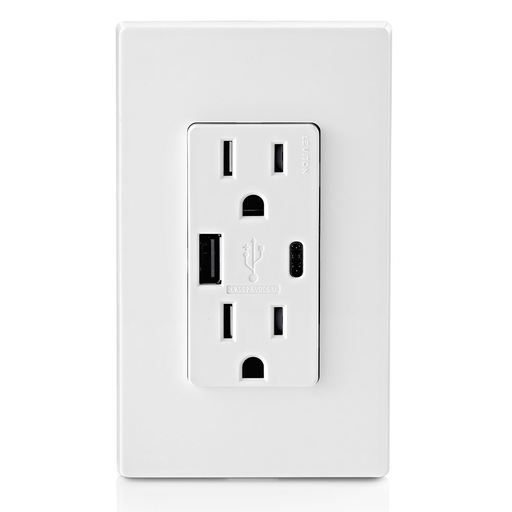

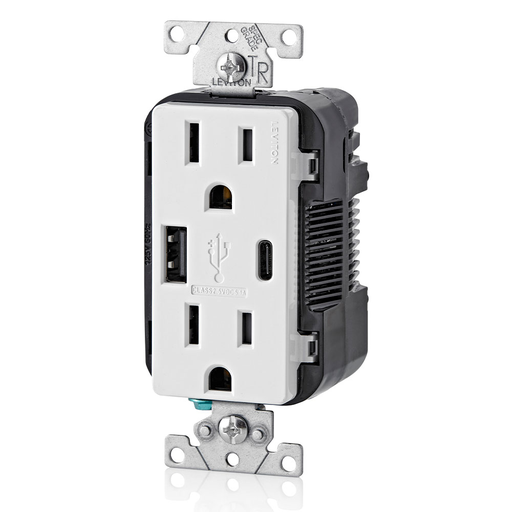

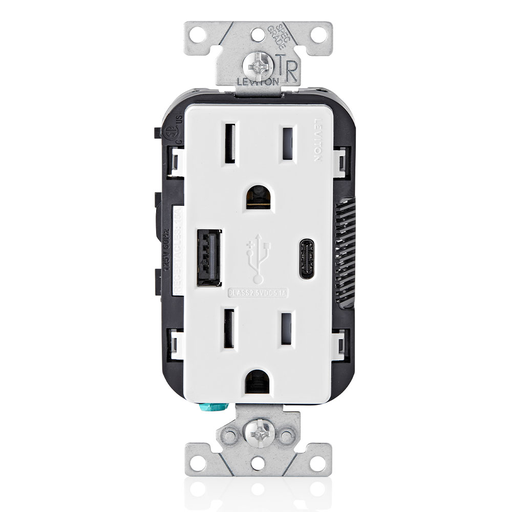

Product image for LEV T5633-W DECORA TYPE AC USB 15A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

LEV T5633-W DECORA TYPE AC USB 15A

Manufacturer: Leviton | Catalog # T5633-W | Codale Part # 4258398
$78.85/ea
ea
Log in or register to view your price, purchase history, and more!
46 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 25+W (5.1 Amp), Type A and Type-C USB In Wall Charger, Grounding, Side Wired & Back Wired - White

Technical Information

Amperage
15 Amp
Applications
For Residential/Commercial Specification Grade
Body Material
Thermoplastic,Thermoplastic
Conductor Size
14-12 AWG
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial,Residential
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees C
Outlet Type
Wall
Temperature Rating
-10 to 40 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
14 lb-in
Type
Type A/C Duplex Receptacle
Voltage
125 VAC

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477841273
Color
White
Product Type
Outlet/USB Combo
Product UPC
07847784127
Weight
0.3600 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Features
  • Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
  • Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, Pixel and more
  • One Type A Port and one Type-C Port; combined total of 5.1A of charging power - Type-C Port can charge maximum 3 Amps @ 5V - Type A Port can charge maximum 2.4 Amps @ 5V
  • Tamper-Resistant improves child safety built-in shutter prevents access by most non-rated/foreign objects
  • USB Ports tested to withstand over 10,000 insertions
  • Charges most Type A and Type-C USB powered devices
  • Type-C Port permits the cables to be inserted easily in either direction
  • Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device
  • Compatible with Decora® wallplates and Decora Plus™ screwless wallplates
  • Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
  • No data transfer capability
  • Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
  • SMART Built-in smart chip recognizes the individual devices charging requirements to optimize the charge (Does not provide Power Delivery. See Leviton T5635 )
  • POWERFUL - Two high-powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power
  • CONVENIENT No more searching for charging adapters! Upgrade so you can charge electronics leaving the outlets free for additional power needs
  • THE FUTURE OF CHARGING USB Type-C provides faster charging and is emerging as the standard port on many phones, tablets and laptops
  • ENHANCED SAFETY Built-in overcurrent protection helps protect electronics from receiving too much power, which can damage the device
Patents
  • CA2621644
  • CA2624409
  • CA2677283
  • CA2857863
  • MX338817
  • US7355117
  • US7820909
  • US7868719
  • US8242362
  • US8944859
  • US9368982
  • US9496726
