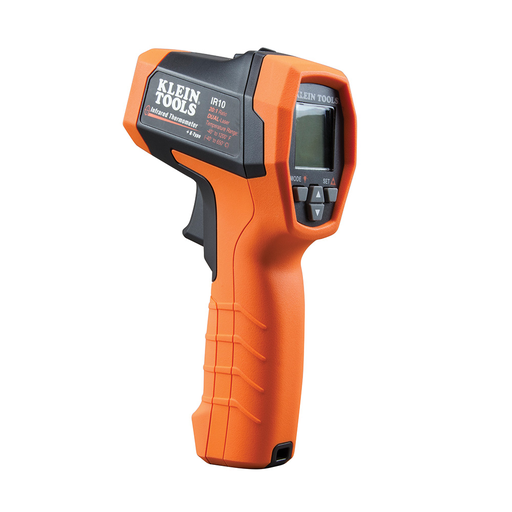

Klein IR10 Dual-Laser Infrared Thermometer, 20:1

Manufacturer: Klein Tools | Catalog # IR10 | Codale Part # 4259867
$114.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet

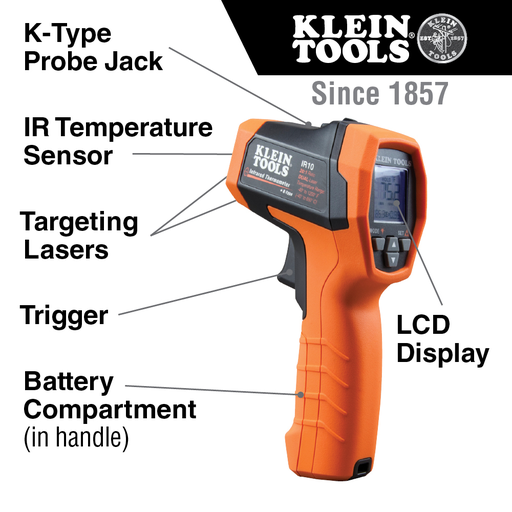

Klein Tools IR10 is a professional dual targeting laser infrared (IR) thermometer. It offers a wide measurement range, a tight 20:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. In addition to measuring temperature using IR emission, it can also measure temperature using a standard K-type probe.

Technical Information

Accuracy
IR: 32 F and Above: +/-3 F or +/-1.5% (Whichever is Greater), Less Than 32 F: +/-(3.6 F + 0.2 F/), K-Type: 32 F and Above: +/-2 F or +/-% (Whichever is Greater), Above 32 F: +/- 3 or +/1% (Whichever is Greater)
Applications
For Temperature Measurements
Battery Type
9 V Alkaline
Display Type
Digital Backlit
Material
Plastic
Response Time
<150ms
Type
Dual-Laser

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644691850
Product UPC
09264469185
Weight
0.463 lb

Dimensions

Depth
7 Inch
Height
4.49 Inch
Overall Length
7 in
Width
2.05 in

Certifications and Compliance

Country of Origin
China
Features
  • Incorporates surface temperature measurement capability using IR emission and can also measure bulk temperatures of air, gas, or liquids using a standard K-Type probe
  • Dual targeting lasers offer more accurate determination of the area being tested
  • Optical Resolution (Distance-to-Spot) is 20:1
  • Measurement range for both IR and K-Type probe -40 to 1200-Degree Fahrenheit (-40 to 650-Degree Celsius)
  • Not a medical device; thermometer is NOT intended for use on people or animals.
  • Adjustable emissivity from 0.1-1.0 delivers flexibility to address multiple applications
  • Bright backlit display for working in low ambient lighting conditions
  • Statistical parameters for measurement event - max/min/avg/diff
  • User definable high/low limits with audible and visual alarms when limits are breached
  • Uses one 9-volt alkaline battery, with battery life expectancy at 8 hours of continuous use with laser and backlight on

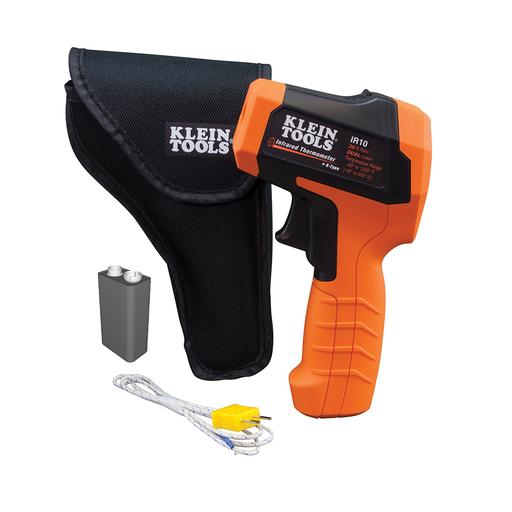

  • Includes custom pouch, K-Type probe and battery
  • Soft-touch, over-mold housing; built to withstand a 9.9-Foot (3 m) drop
  • \"Auto Power-Off\" conserves and extends battery life
  • IP54 ingress protections for dust and water resistance
  • U.S. patent D791,624
  • Dual Targeting Lasers, 20:1 Distance-to-Spot Ratio; Hi/Low Limits with Simultaneous Audible and Visual Alarms When Limits are Breached; Bright Backlit Display; Works with K-Type Probe Also
  • Auto Power-Off conserves and extends battery life
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
  • LASER RADIATION, Class 2 laser. Do NOT stare into beam. Exposing eyes to laser radiation can result in severe and permanent eye injuries. NEVER look directly into the laser beam emitted by this instrument.
  • Thermometer is NOT intended for use on people or animals.
  • Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
