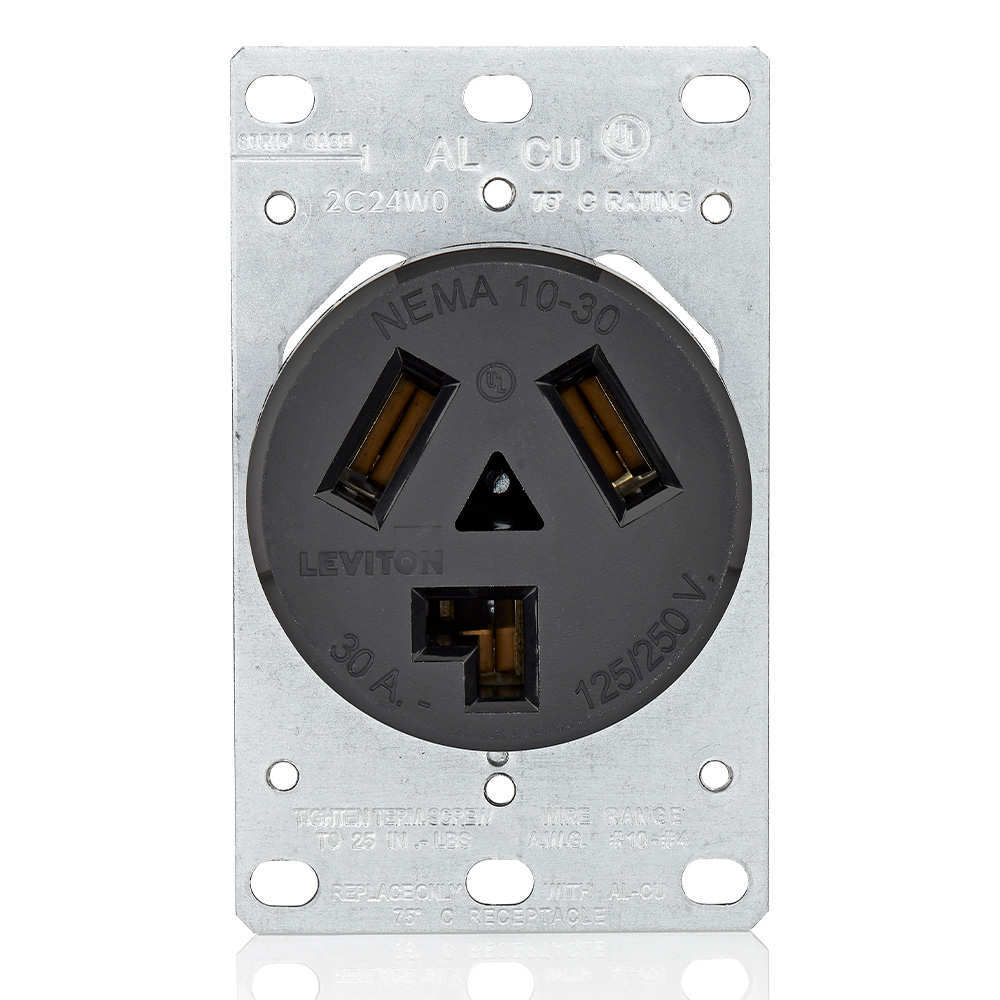

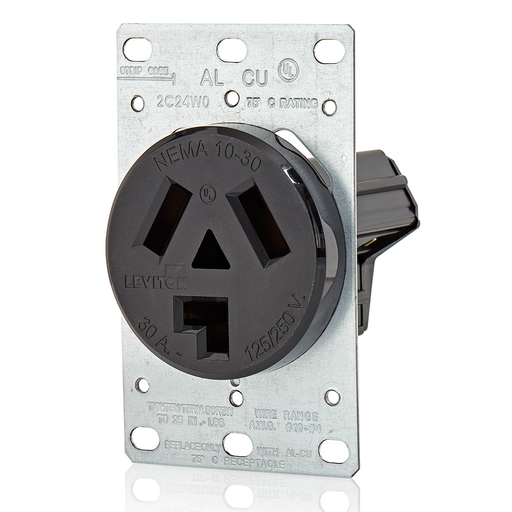

LEV 5207-S10 EB REC SGL 3PO 3WI FLU

Manufacturer: Leviton | Catalog # 5207-S10 | Codale Part # 4260195
$7.77/ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
30 Amp, 125/250 Volt, NEMA 10-30R, 3P, 3W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Non-grounding, Side Wired, Steel Strap . Black

Technical Information

Amperage
30 Amp
Applications
For Industrial Use
Conductor Size
4 AWG
Connection Type
Side Wired
Contact Material
Double-Wipe Brass
Device Type
Single Receptacle
Dielectric Strength
2000 V
Grade
Industrial
Grounding
Non-Grounding
Material
Thermoplastic
Mounting Type
Flush
NEMA
10-30R
Number of Poles
3 Pole
Number of Wires
3 Wire
Standard
UL
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Side Wire
Torque
25 lb-in
Type
Receptacle
Voltage
125/250 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL RECEPTACLES

General Product Info

12-Digit UPC
078477905753
Color
Black
Environmental Conditions
UL 94-V2 Flammability
Product UPC
07847790575
Weight
0.2650 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • For use with #10 AWG thru #4 AWG copper, copper-clad, or aluminum wire. Tighten terminal screws to 25 in-lbs. of torque.
  • DURABLE Built of durable high-impact thermoplastic
  • EASY TO INSTALL Terminals marked for easy identification and fast wiring, terminals require 25 in lbs
  • EFFICIENT Features heavy-gauge, high-performance copper contacts
  • CONVENIENT All mounting hardware included
  • COMPATIBLE Fits all wallplates with 2.15\" diameter center hole
NEMA
  • 10-30R
