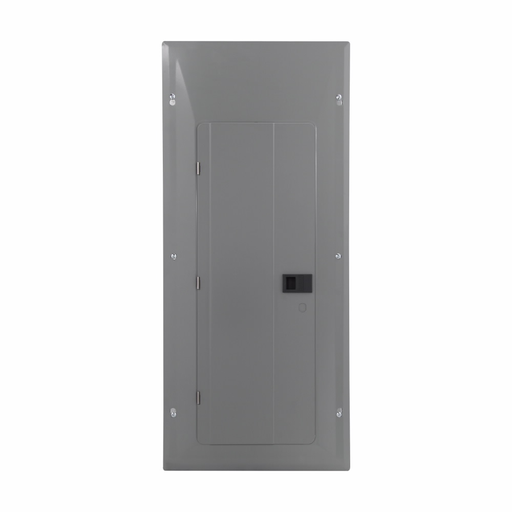

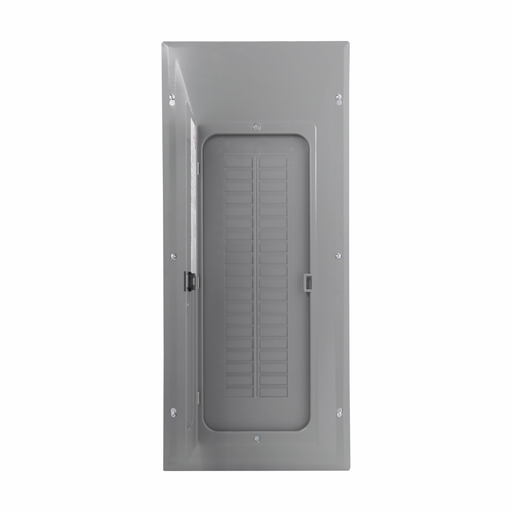

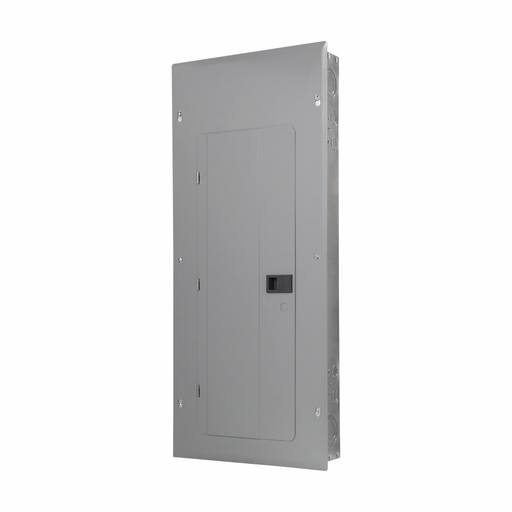

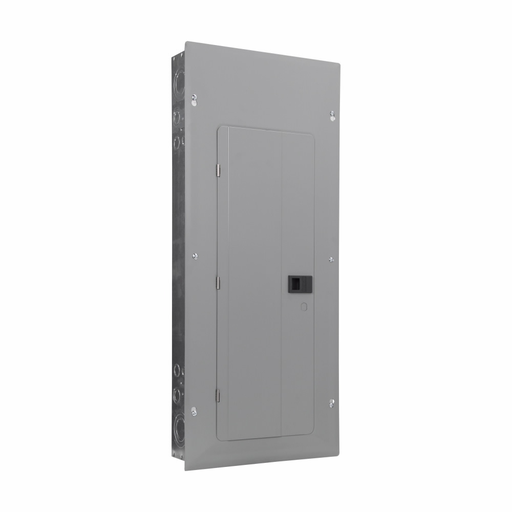

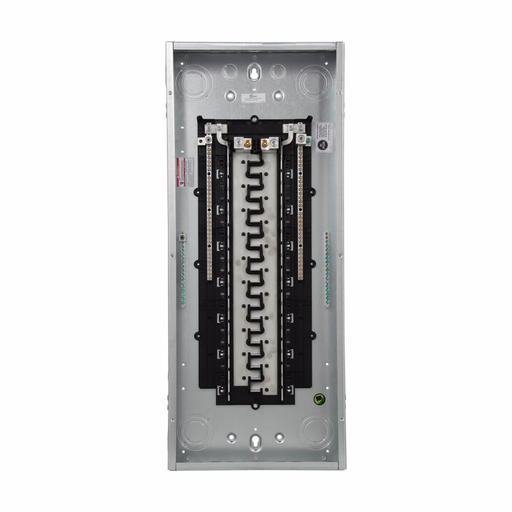

ETN BRP40L200G BR PON LC,200A, MLO,

Manufacturer: Eaton Cutler-Hammer | Catalog # BRP40L200G | Codale Part # 4260640
$798.81/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Eaton BR main lug loadcenter,Ground bar,Main lug only,200 A,X6,Aluminum,Gray, NEMA 1,Metallic,10kAIC,CSR2200,Surface,flush,80 Circuits,Twenty-four pole,40 Spaces,Two hots,a neutral,and a ground,Single-phase,120/240V,#1.300 kcmil

Technical Information

Amperage
200 Amp
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Bus Material
Aluminum
Cover Type
Cover included
Enclosure
NEMA 1
Enclosure Material
Metal
Interrupt Rating
10 kAIC
Mounting Type
Surface, Flush
Number of Circuits
80
Number of Phases
1 Phase
Number of Spaces
40
Size
X6
Type
MLO
Voltage
120/240 Volt

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786689052997
Color
Gray
Product UPC
78668905299
Weight
30.3 lb

Dimensions

Height
3.88 Inch
Length
34.12 Inch
