Panduit F91BN1NNNSNM001 Opti-Core® 1 Fi

Manufacturer: PANDUIT | Catalog # F91BN1NNNSNM001 | Codale Part # 4260949
$33.32/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

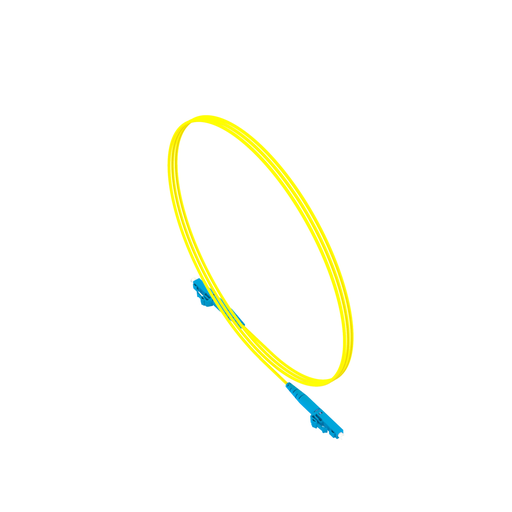

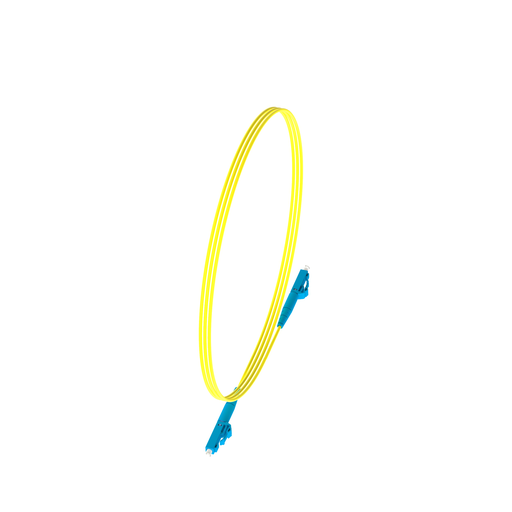

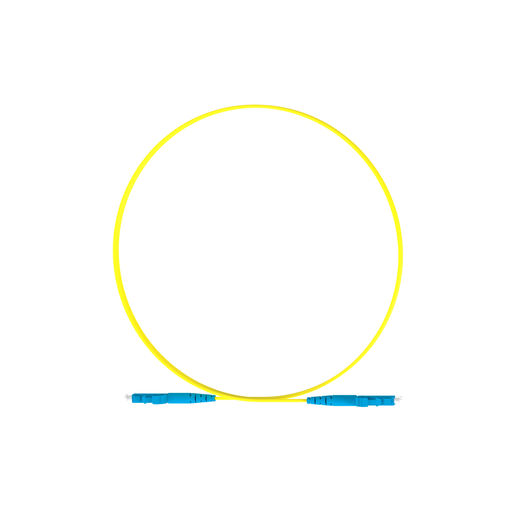

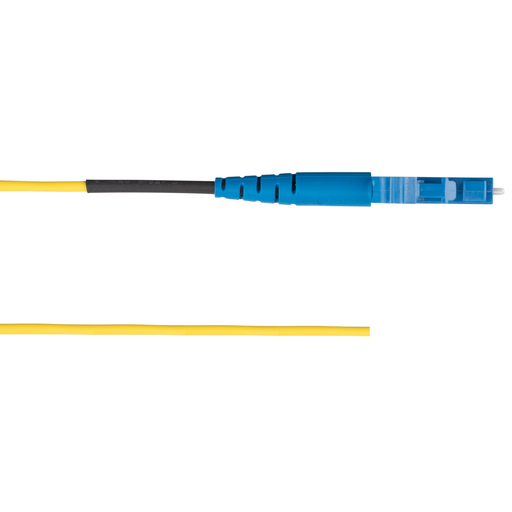

The simplex fiber patch cord is OS2 900.m buffered fiber with no cable jacket. It features a LC connector to a Pigtail, has standard insertion loss and is 1 meter in length.

Technical Information

Applications
Provide Interconnect and Cross-Connect of Applications in Entrance Facilities, Telecommunications Rooms, Data Centers, at the Desk and Network Applications to Interconnect Pre-Terminated Cassettes in Main Distribution, Horizontal Distribution, and Equipment Distribution Areas
Body Type
Simplex
Boot Color
Blue
Cable Type
Simplex
Connector Type
LC x Pigtail
Fiber Cable Size
9/125 m
Fiber Type
Singlemode
Max Operating Temperature
158 degrees F
Min Operating Temperature
-20 degrees C
Number of Fibers
1
Number of Poles
1 Pole
Number of Screws
1
Plug Type
LC Simplex
Standard
CSA,NOM,UL
Temperature Rating
158 degrees F
Type
OS1/OS2, Singlemode, Buffered, 1-Fiber
Wire Size
900 ?m

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Opti-Core®

General Product Info

12-Digit UPC
074983921874
Cable Color
Blue
Color
Yellow
Environment
Indoor
Product UPC
07498392187
Weight
0.0500 lb

Dimensions

Cable Length
1 m
Length
3.28 Inch
Outer Diameter
0.03 in
Outside Diameter
NA
Overall Length
3.2 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Costa Rica,Romania

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)
