Panduit LAM2SA300-56-3 Pan-Lug™ Aluminum Mechanical Lug

Manufacturer: PANDUIT | Catalog # LAM2SA300-56-3 | Codale Part # 4263131
$5,172.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

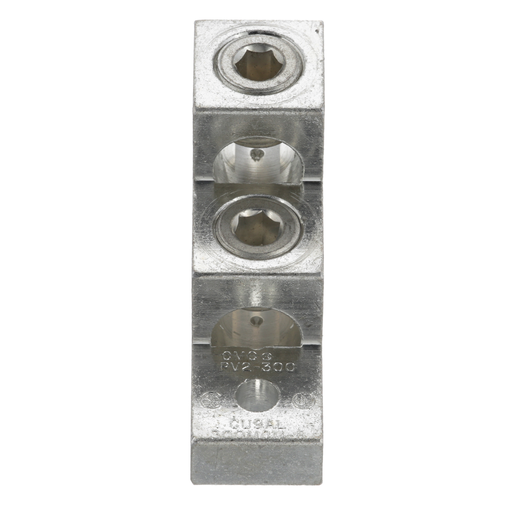

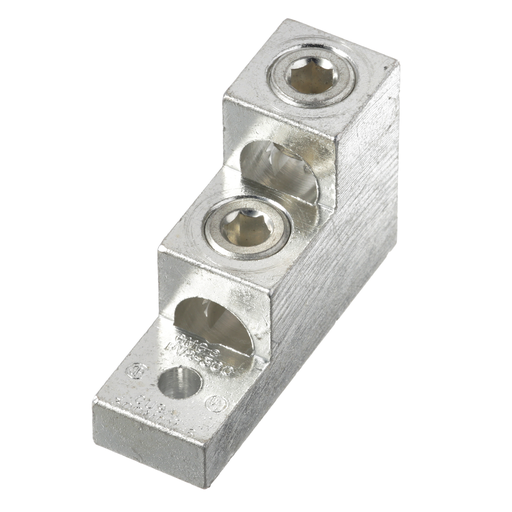

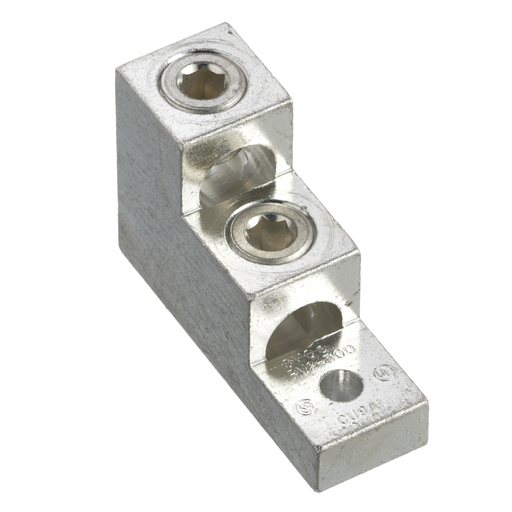

One-hole, aluminum, vertical two barrel lug, dual barrel, type LAM2SA, #6 AWG - 300 kcmil, 5/16 (7.9mm) stud hole.

Technical Information

Amperage
NA Amp
Applications
Stranded Aluminum or Copper Code Conductor
Base Material
Aluminum
Cable Size
AWG
Material
Aluminum
Number of Holes
1 Hole
Stud Size
5/16 In.
Tongue Thickness
0.5 in
Tongue Type
Straight
Tongue Width
1 in
Type
Mechanical Lug

Packaging

Pkg Qty
3

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983423200
Product UPC
07498342320
UNSPSC
39121408
Weight
1.2300 lb

Dimensions

Height
2 Inch
Overall Length
3 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C
Prop 65
  • No
